Repair Procedures: Installation

1. Install in the reverse order of removal.

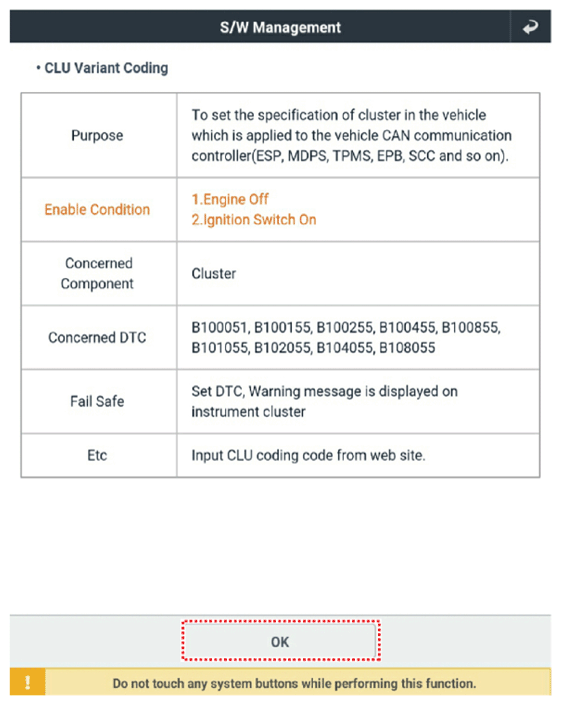

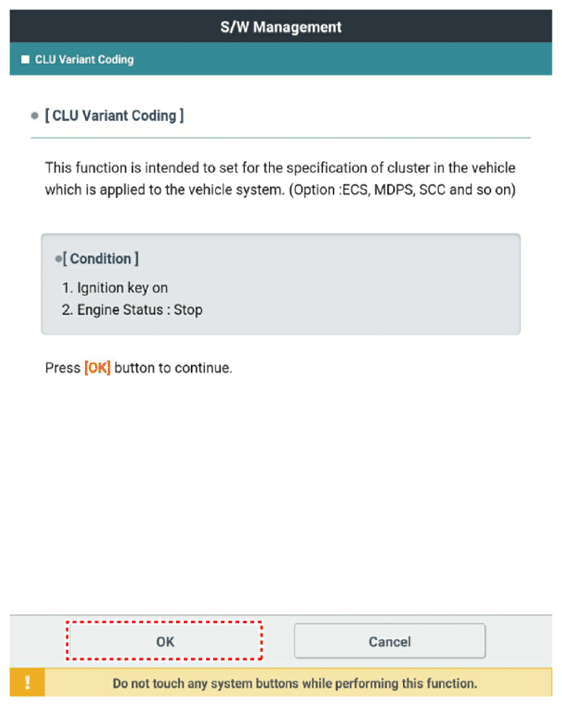

2. After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.
