Repair Procedures: Removal
NOTE:
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Disconnect the negative (-) battery terminal.
- Remove the cluster fascia panel.
(Refer to Body - "CLUSTER FASCIA PANEL ")

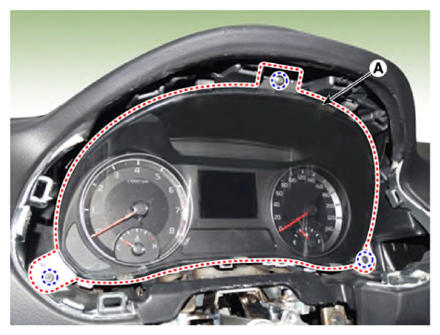

- Remove the instrument cluster (A) after loosening the screws.

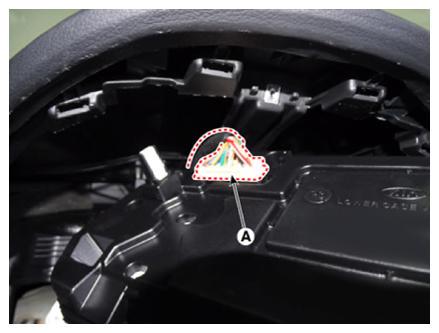

- Disconnect the connector (A) from instrument cluster.
