Removal And Installation

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the Coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

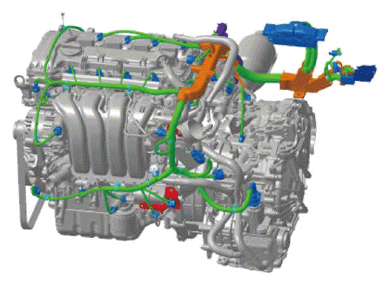

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the water temperature assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

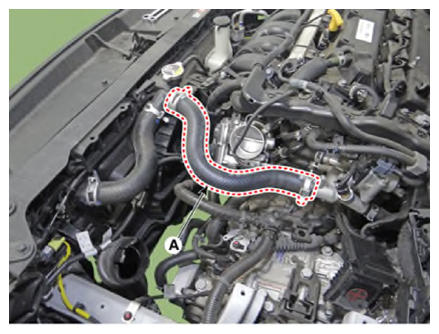

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

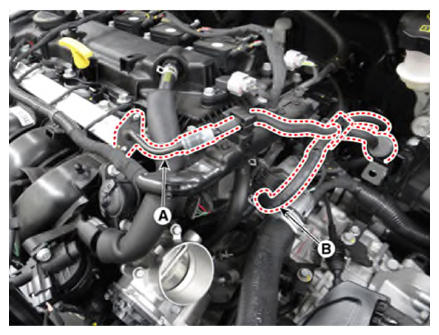

Disconnect the purge control solenoid valve (PCSV) hose (A) and the vacuum hose (B).

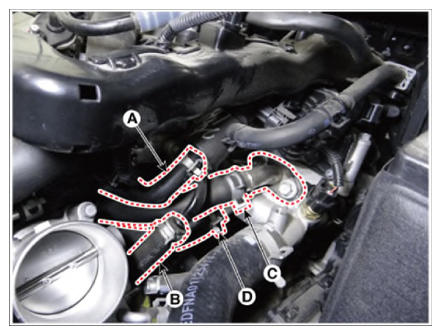

Remove the EGR cooler pipe C (C).
Tightening torque:

18.6-23.5 N.m (1.9-2.4 kgf.m, 13.7 - 17.4 lb.ft)
Disconnect the oil cooler coolant hose (D).

Courtesy of KIA MOTORS AMERICA, INC.

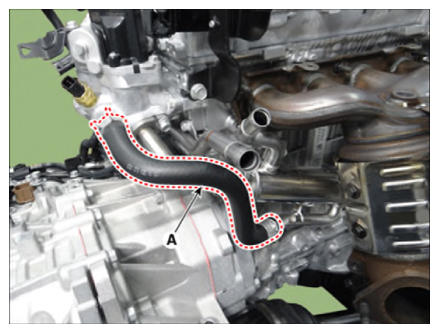

Disconnect the EGR cooler coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

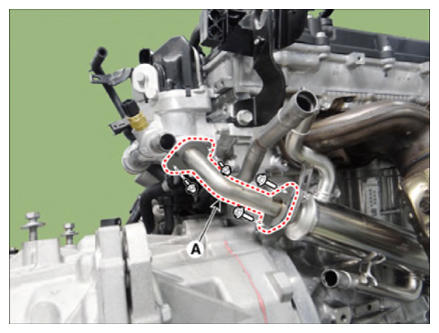

Remove the EGR cooler pipe B (A).
Tightening torque:

18.6-23.5 N.m (1.9-2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the electric control EGR valve from the water temperature assembly.
(Refer to Engine Control/Fuel System - "ELECTRIC EGR CONTROL VALVE ")

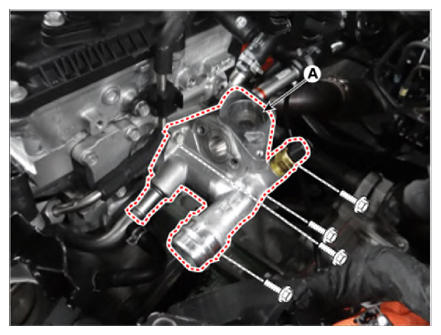

Remove the water temperature control assembly (A).
Tightening torque

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal
NOTE:
- Always use a new water temperature control assembly O-ring.
- Clean surface on the O-ring and install the O-ring after wetting with water.
