Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.

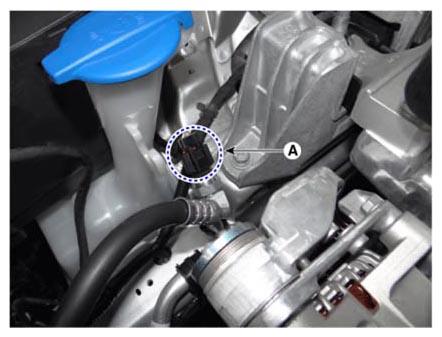

Disconnect the A/C pressure transducer connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

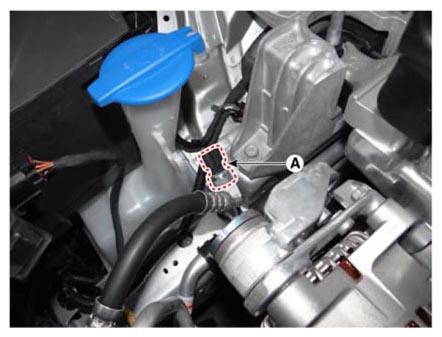

Remove the A/C pressure transducer (A).
Tightening torque:

9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to bend the liquid & suction pipe.
To install, reverse the removal procedure.

NOTE: When installing, replace it with a new O-ring.

Courtesy of KIA MOTORS AMERICA, INC.
