Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the engine room under cover.
G 2.0 MPI NU (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
G 1.6 MPI GAMMA (Refer to ENGINE ROOM UNDER COVER Engine Mechanical System - "Engine Room Under Cover")

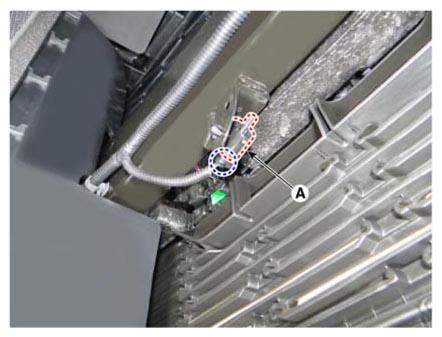

- Disconnect the connector and then remove the ambient temperature sensor (A).
- To install, reverse the removal procedure.
