Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the evaporator core.

    (Refer to Air Conditioning System- "EVAPORATOR CORE ")

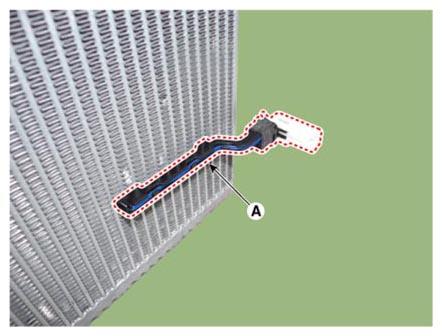

  3. Remove the evaporator temperature sensor (A) from the evaporator core.
    G14557157Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
