Repair Procedures: Adjustment
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

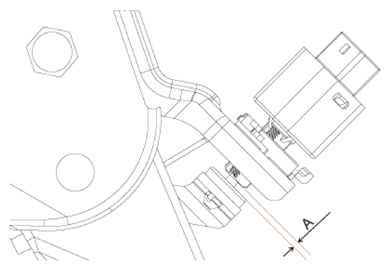

- Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A):
1.0 - 2.0 mm (0.04 - 0.08 in.)
- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
- If everything is normal, reinstall the stop lamp switch and check the clearance again.
