[Automatic Console]

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

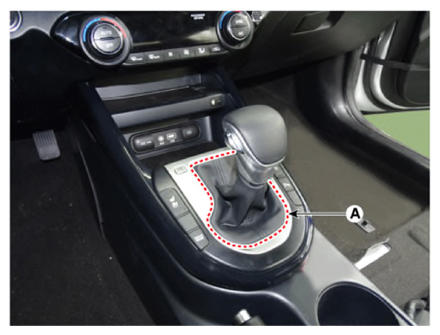

Remove the gear knob & boots (A) pull both of it up.

Courtesy of KIA MOTORS AMERICA, INC.

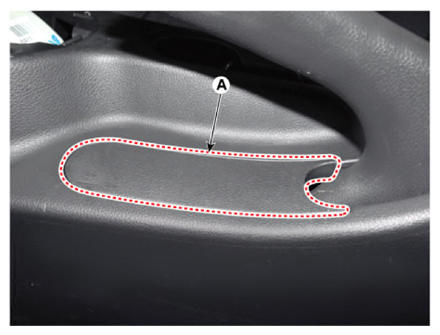

Using a screwdriver or remover, remove the parking brake cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

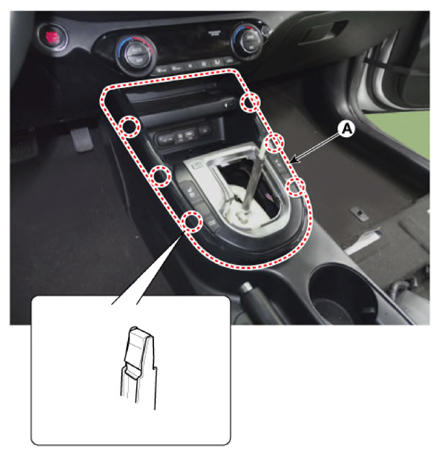

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

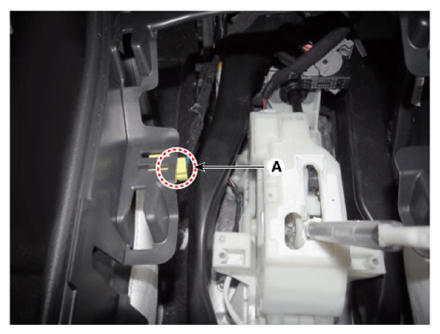

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

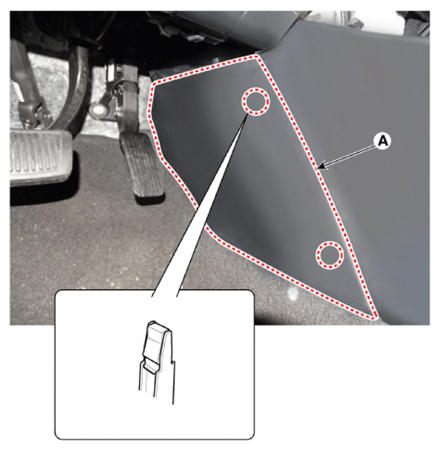

Remover the console side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

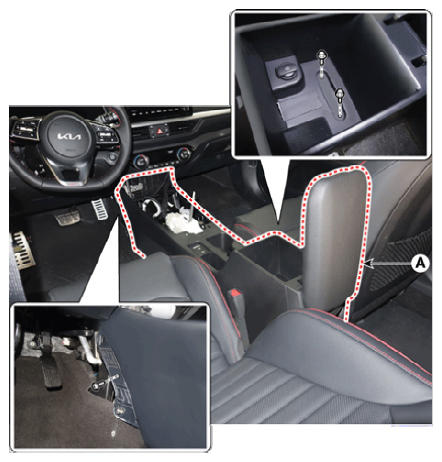

After loosening the mounting screws and bolts, remove the console rear complete assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

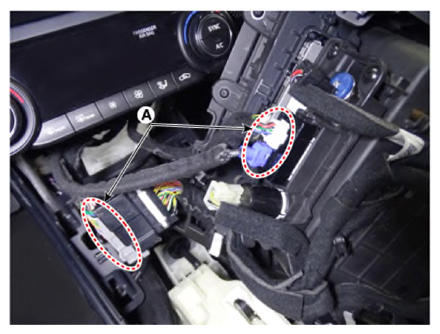

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin - type retainers).
