Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the temperature control actuator.
(Refer to Heater - "TEMPERATURE CONTROL ACTUATOR ")

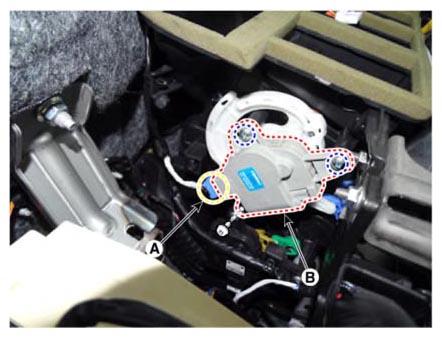

- Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
- To install, reverse the removal procedure.
