Repair Procedures: Replacement: Diesel

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

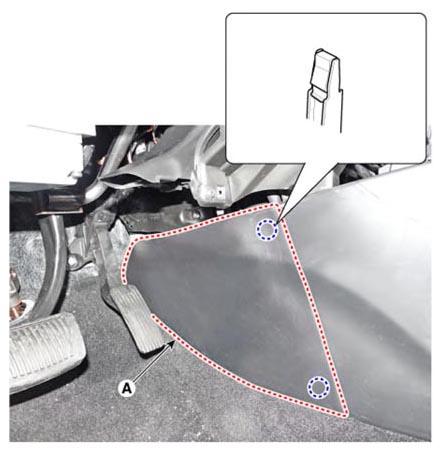

  2. Remove the floor console side cover [LH] (A).
    G14557205Courtesy of KIA MOTORS AMERICA, INC.

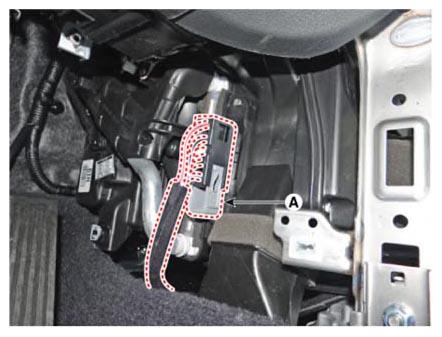

  3. Disconnect the PTC heater connector (A).
    G14557206Courtesy of KIA MOTORS AMERICA, INC.

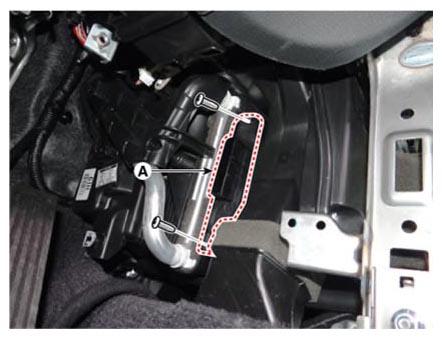

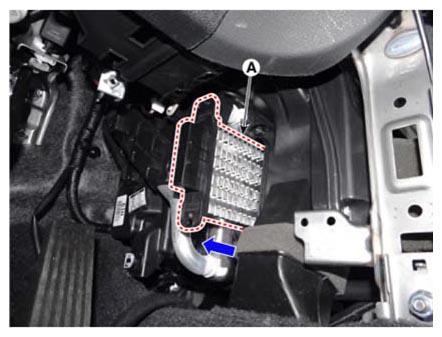

  4. Remove the PTC heater core (A) after loosening the PTC heater mounting screws.
    G14557207Courtesy of KIA MOTORS AMERICA, INC.
    G14557208Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
