Repair Procedures: Replacement: Gasoline
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

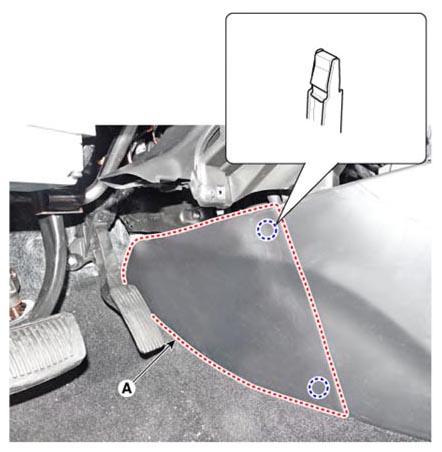

- Remove the floor console side cover [LH] (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Disconnect the PTC heater connector.

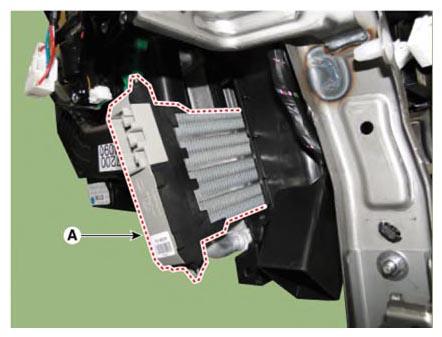

- Remove the PTC heater core (A) after loosening the PTC heater mounting screws.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse the removal procedure.
