Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

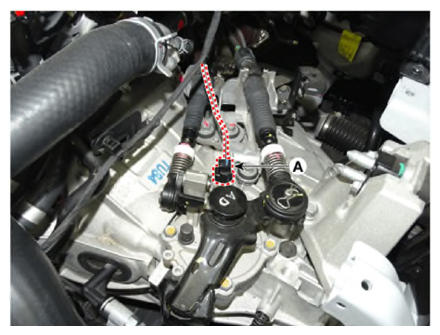

- Disconnect the back up lamp switch connector (A).

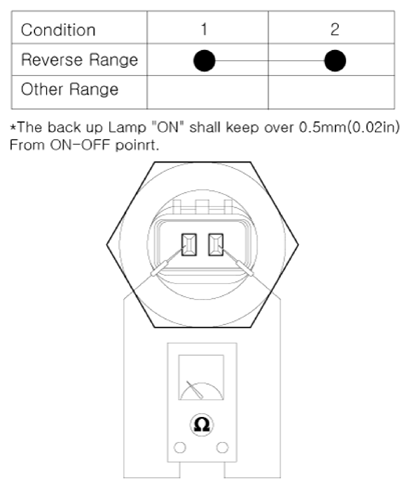

- Check the continuity between power terminal and signal terminal.
