Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust - "AIR CLEANER ")

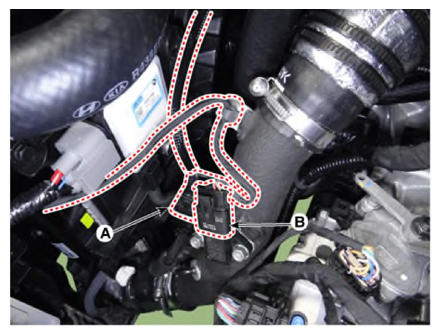

Disconnect the RCV solenoid valve connector (A) and booster pressure sensor (BPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

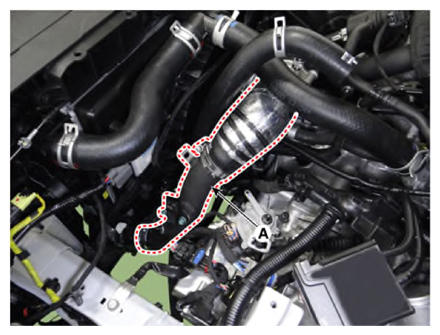

Disconnect the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

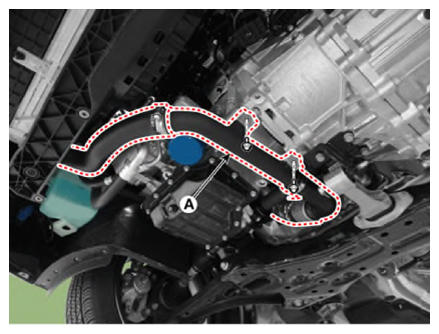

Remove the intercooler inlet hose & pipe (A).
Tightening torque

Hose clamp bolt:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft, 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Pipe mounting Bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

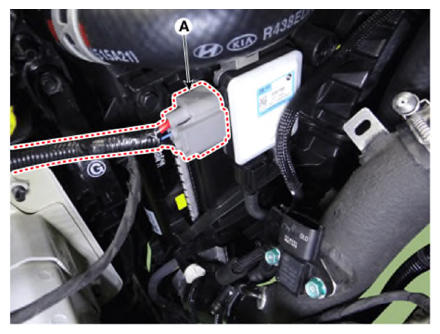

Disconnect the cooling fan controller (PWM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

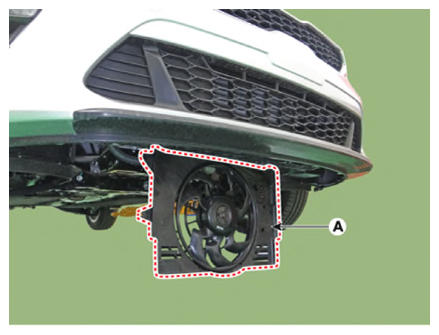

Remove the cooling fan assembly (A).
Tightening torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
