Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

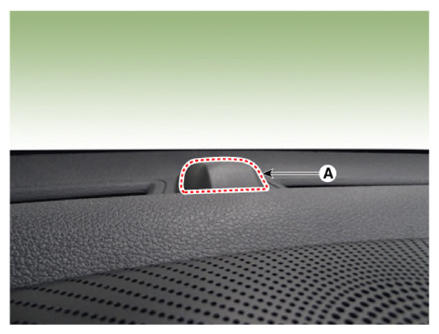

  2. Using a scraper or remover, remove the photo sensor (A).
    G13306419Courtesy of KIA MOTORS AMERICA, INC.

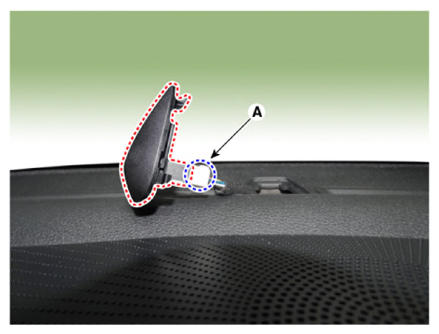

  3. Disconnect the photo sensor connector (A).
    G13306420Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
