Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the temperature control actuator.

    (Refer to Heater - "TEMPERATURE CONTROL ACTUATOR ")

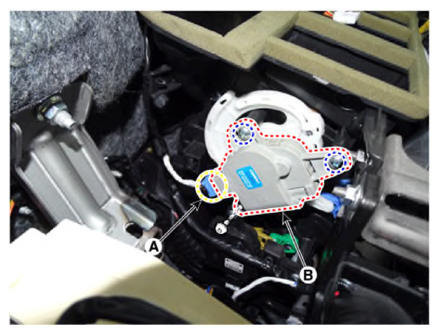

  3. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G13306473Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
