Description & Operation: Description: Notes

Courtesy of KIA MOTORS AMERICA, INC.

1. Function
   • By detecting the pressure, temperature, acceleration, and battery condition, transmit information to ECU by a wireless RF.
   • Wheel location is recognized by comparing the Wheel Pulse of ECS (ABS) and acceleration values of the sensor (High Line).

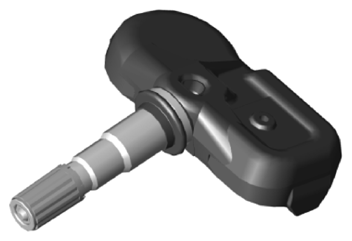

2. Structure and features
   • There are four (4) sensors mounted in each wheel of the vehicle.
   • Frequency conversion type is FSK, and High Line is used in common.
