Component Inspection
- Ignition Switch "OFF".
- Disconnect the battery negative (-) cable.
- Remove the air cleaner
(Refer to Engine Mechanical System - AIR CLEANER

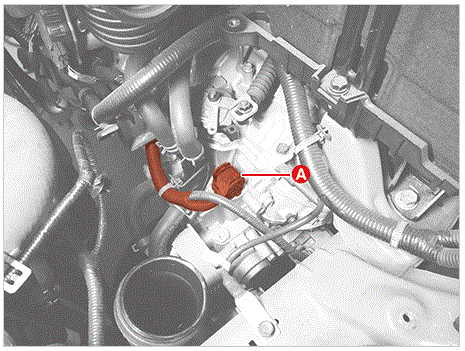

- Disconnect the IVT main connector (A).
- Measure the resistance between power terminal (5) and signal terminal (12).
Specification : 5.3± 0.3Ω
