Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Longitudinal G Sensor Calibration (HAC/DBC Only). Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.	Fig.1 to 5

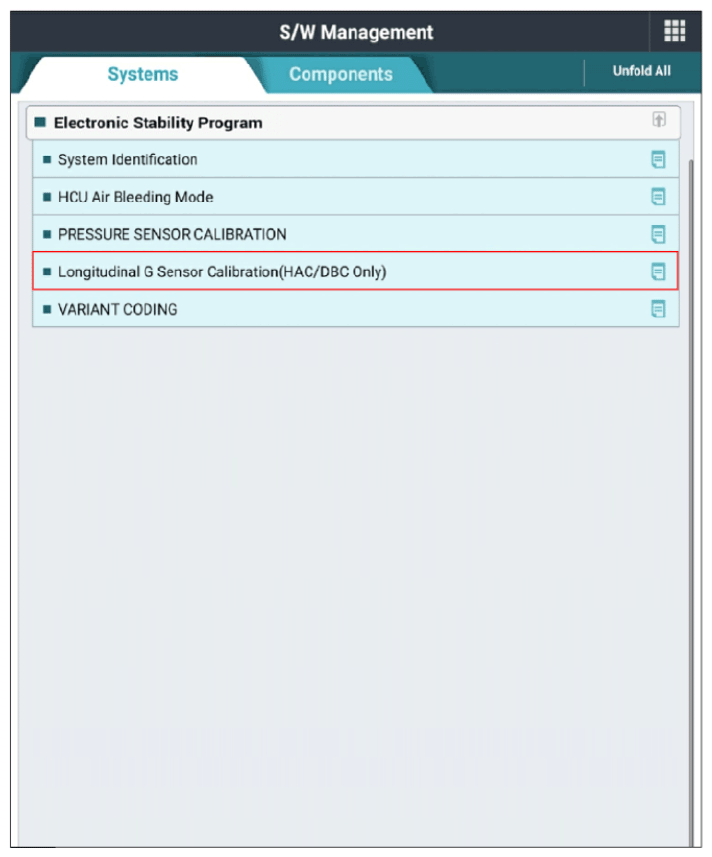

G13301642

Courtesy of KIA MOTORS AMERICA, INC.

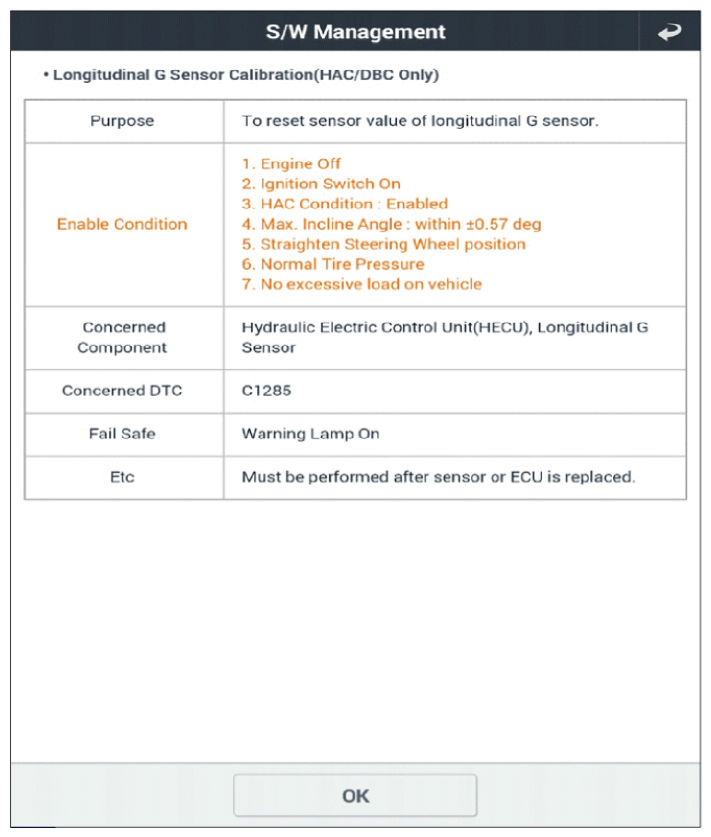

G13301643

Courtesy of KIA MOTORS AMERICA, INC.

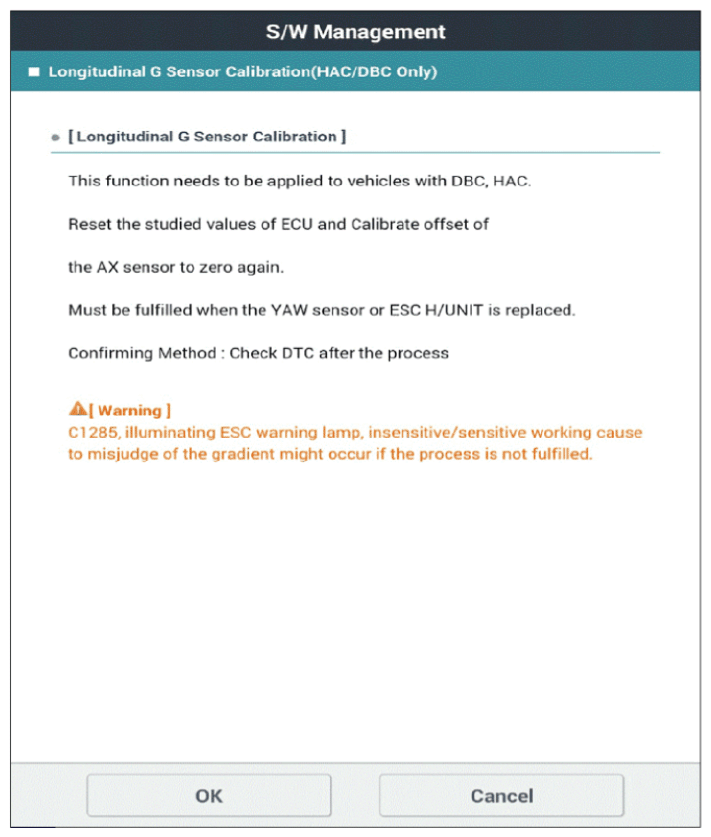

G13301644

Courtesy of KIA MOTORS AMERICA, INC.

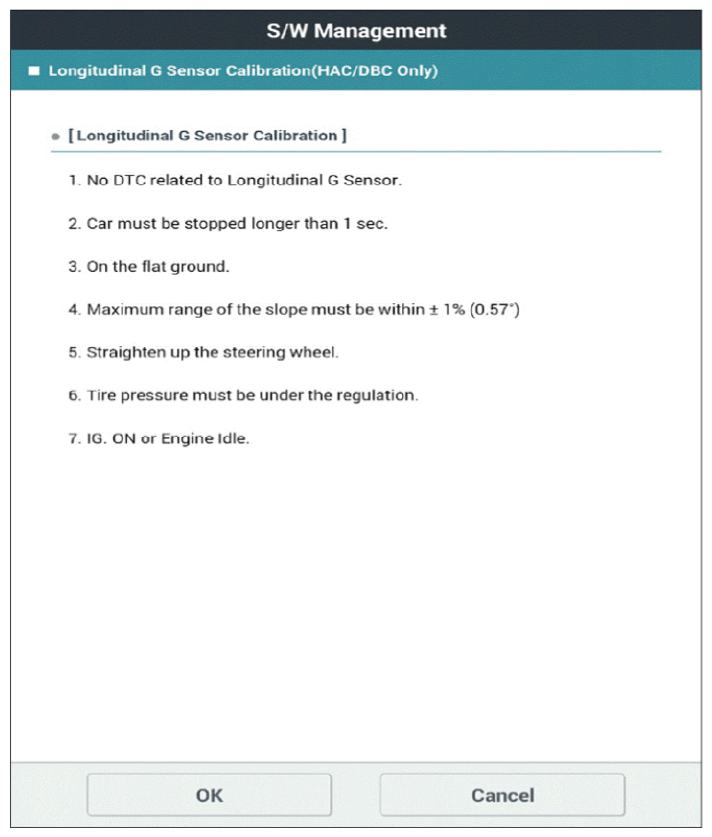

G13301645

Courtesy of KIA MOTORS AMERICA, INC.

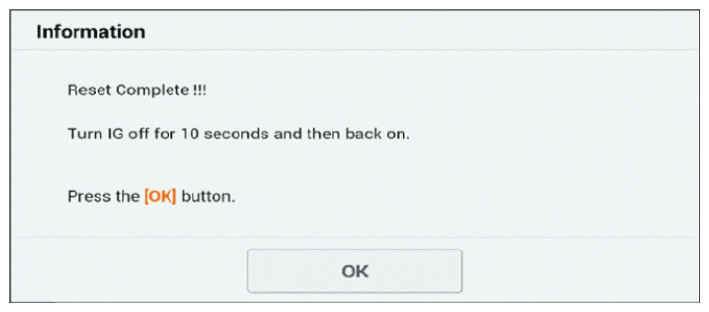

G13301646

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
