Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 6

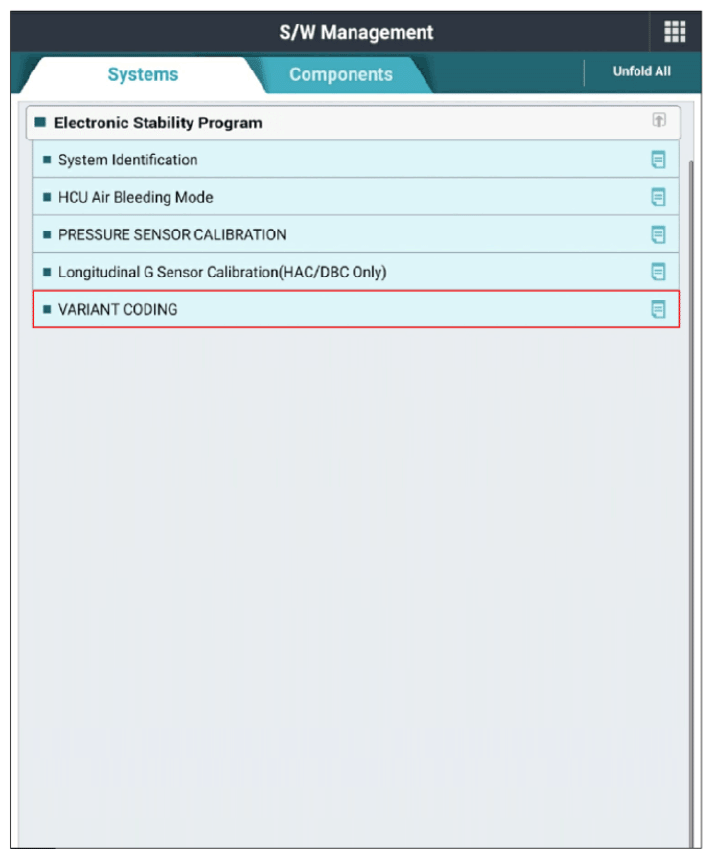

G13301705Courtesy of KIA MOTORS AMERICA, INC.

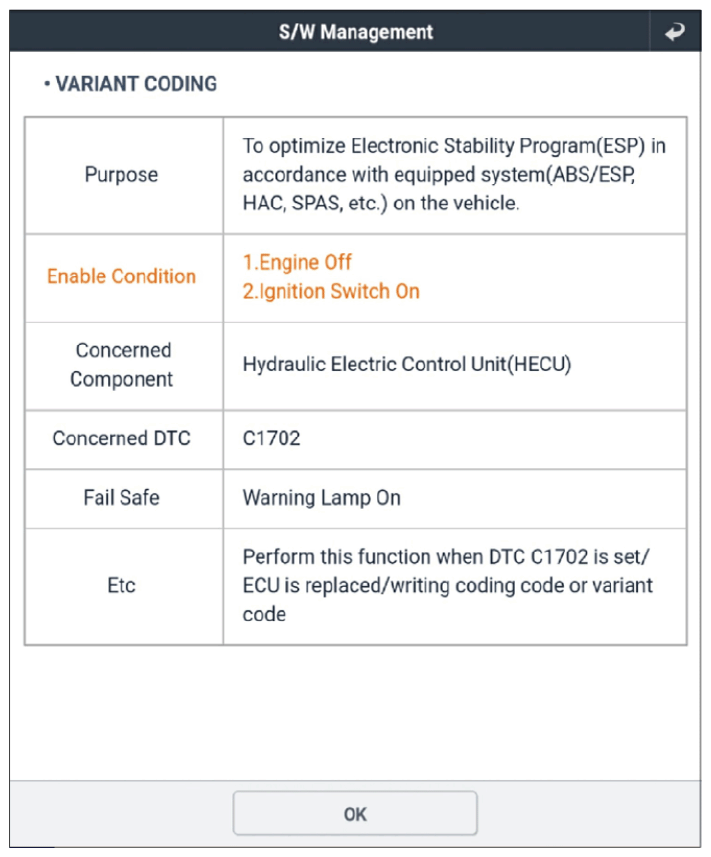

G13301706Courtesy of KIA MOTORS AMERICA, INC.

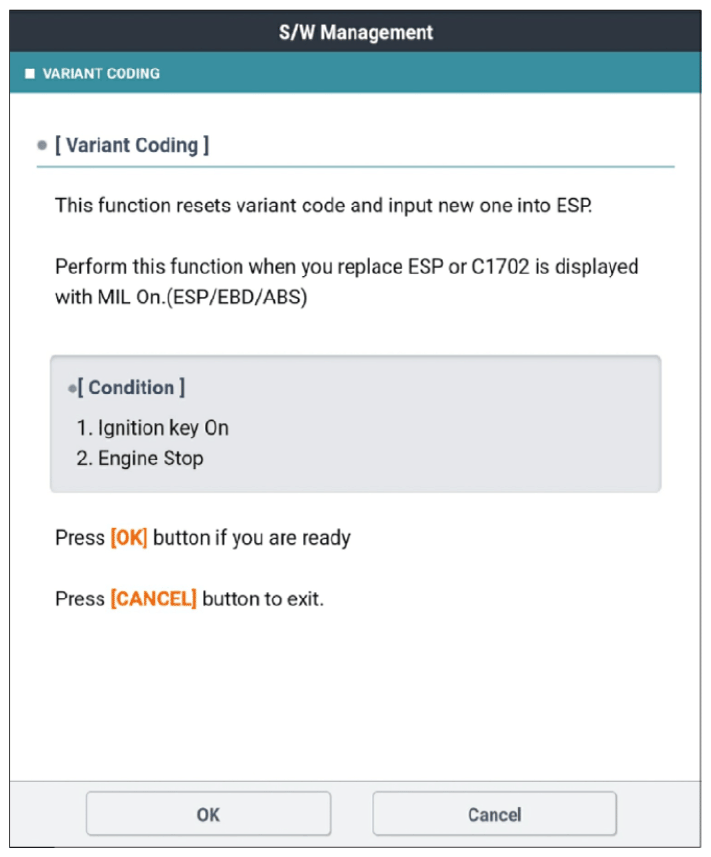

G13301707Courtesy of KIA MOTORS AMERICA, INC.

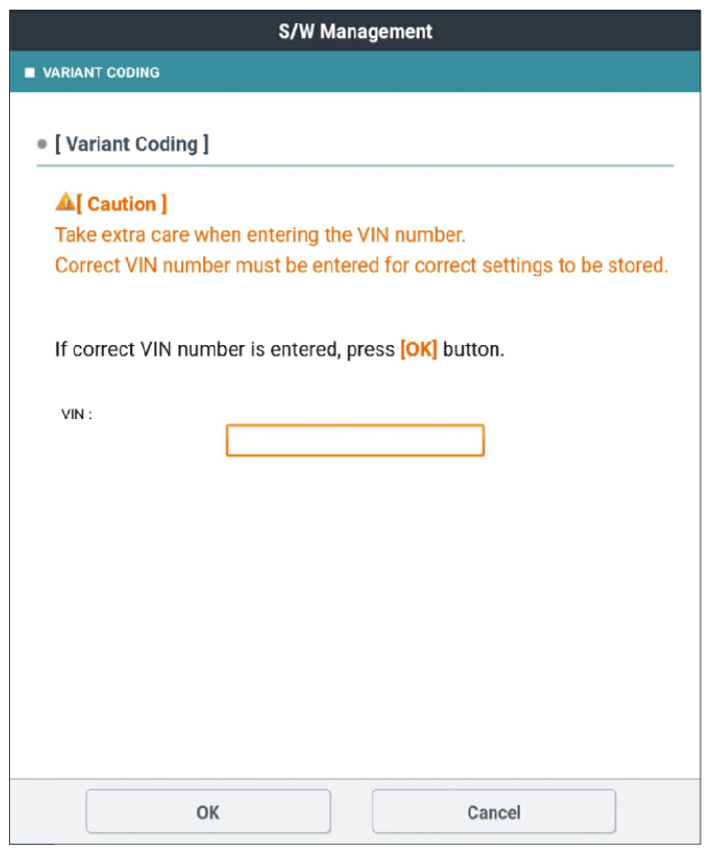

G13301708Courtesy of KIA MOTORS AMERICA, INC.

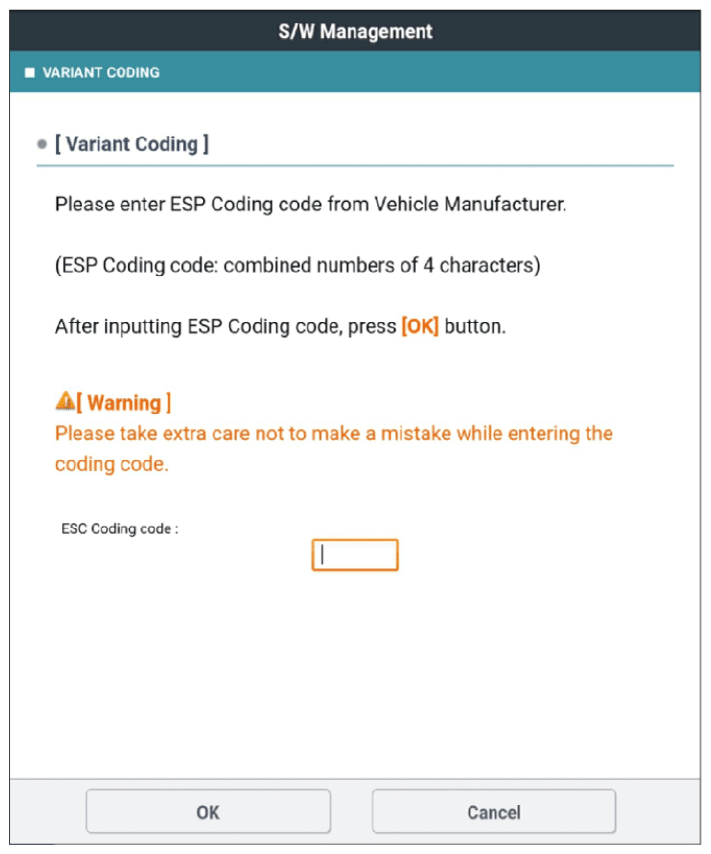

G13301709Courtesy of KIA MOTORS AMERICA, INC.

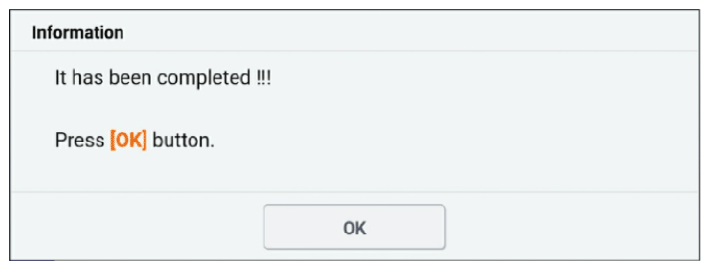

G13301710Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Longitudinal G Sensor Calibration (HAC/DBC Only).
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 5
G13301711Courtesy of KIA MOTORS AMERICA, INC.

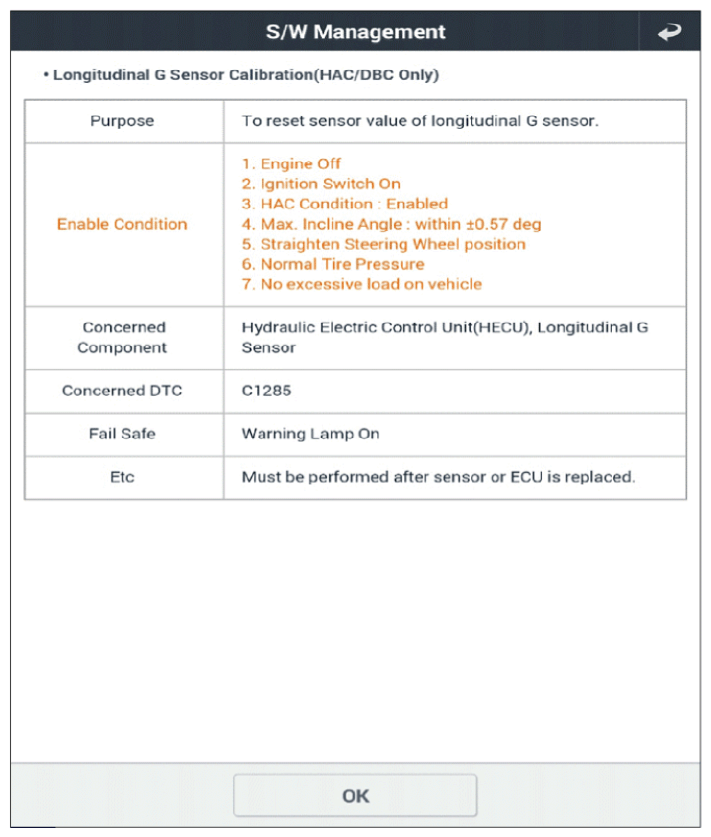

G13301712Courtesy of KIA MOTORS AMERICA, INC.

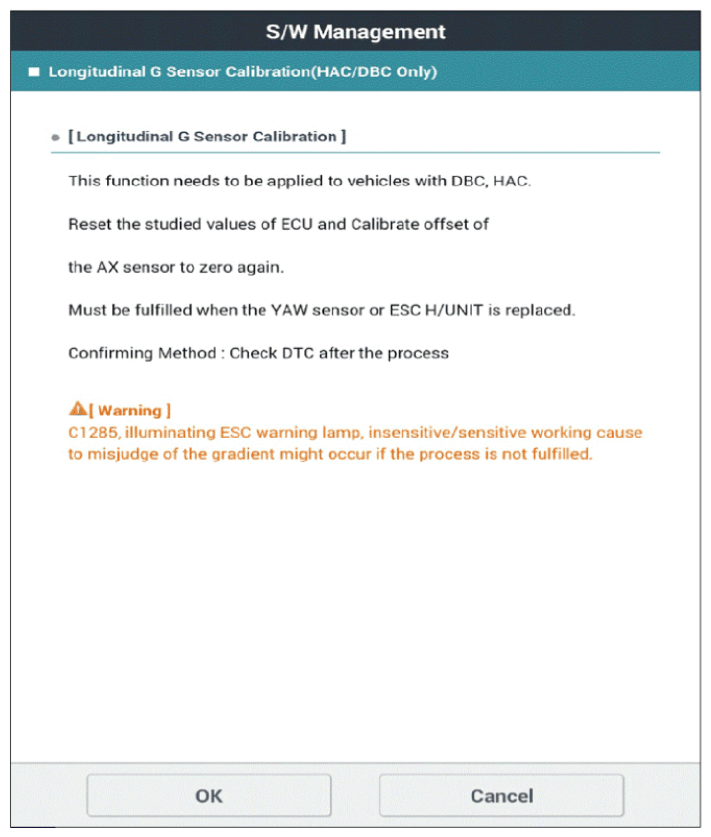

G13301713Courtesy of KIA MOTORS AMERICA, INC.

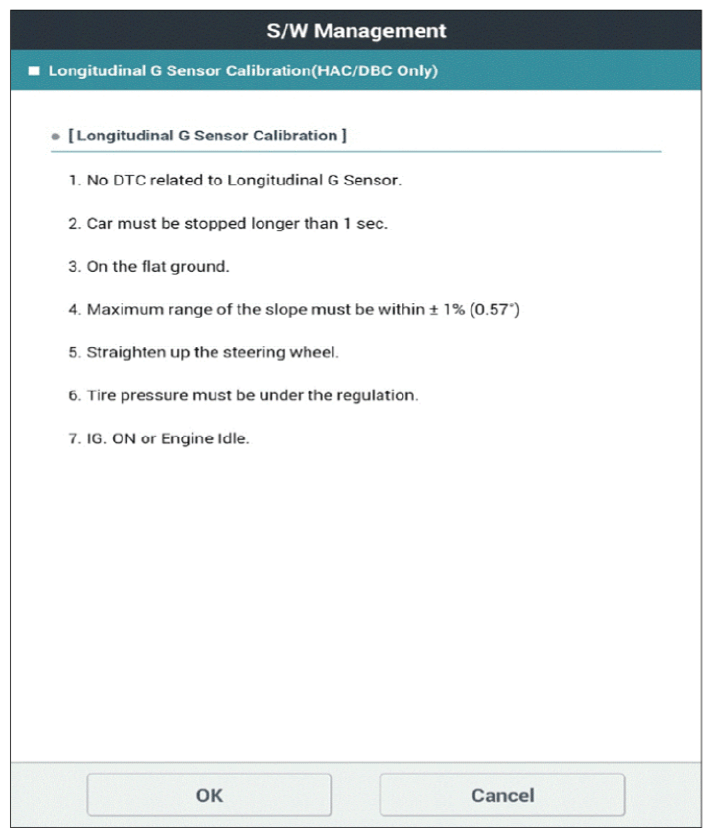

G13301714Courtesy of KIA MOTORS AMERICA, INC.

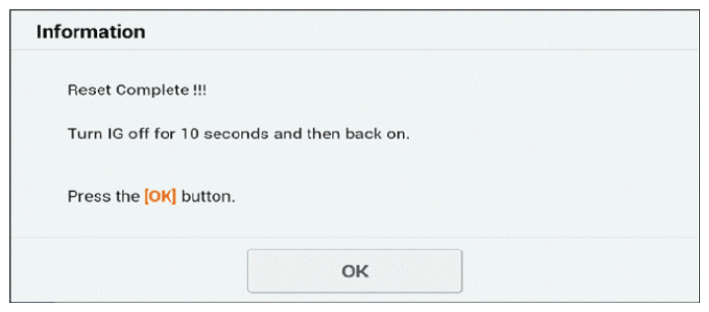

G13301715Courtesy of KIA MOTORS AMERICA, INC.
