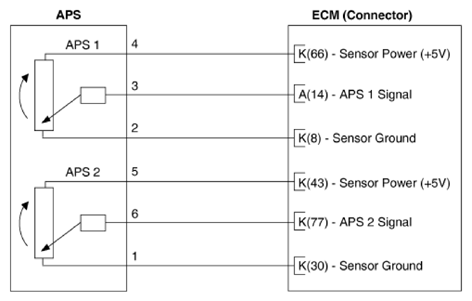

Circuit Diagram: Notes

WARNING: This page is about a different variant/trim than selected.
G13303837Courtesy of KIA MOTORS AMERICA, INC.
