Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")

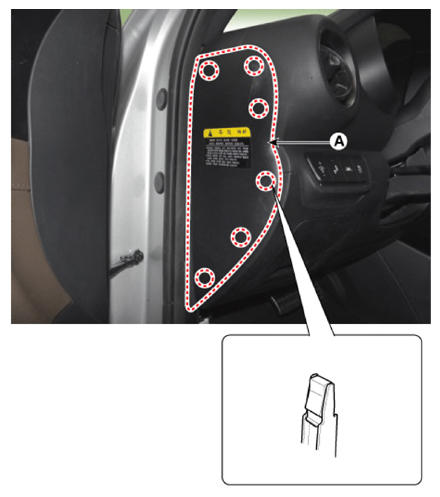

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

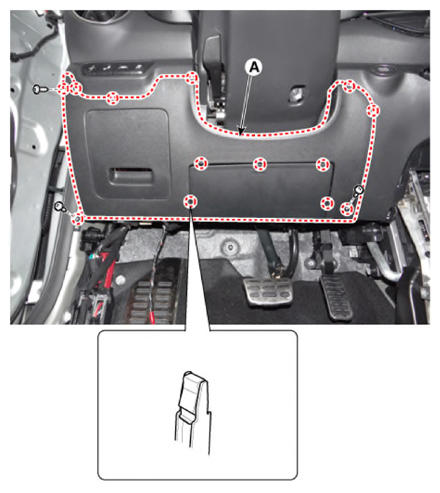

Loosen the mounting screws and remove the crash pad lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

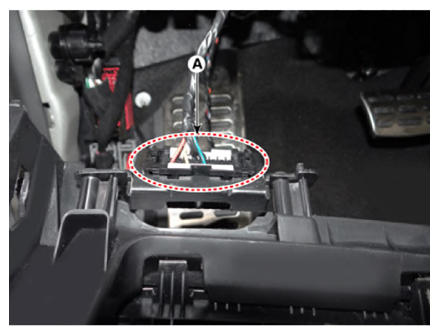

Disconnect the diagnosis connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin - type retainers).
