Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the hood latch release handle.
(Refer to Hood - "HOOD LATCH RELEASE HANDLE ")
Carefully remove the front door body side weatherstrip.

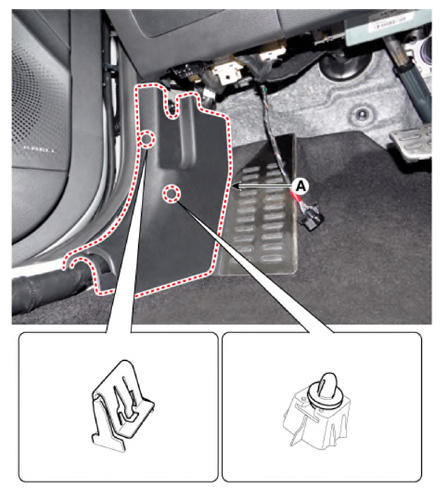

Using a screwdriver or remover, remove the cowl side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
