Glass Adjustment
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Information
Check the glass run channel for damage or deterioration, and replace it if necessary.
- Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

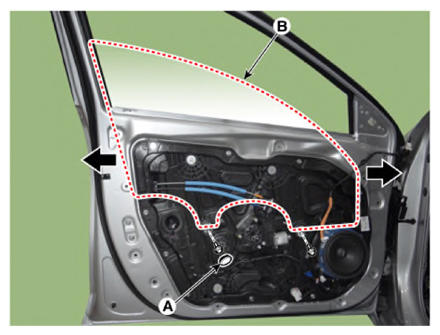

- Separate the mounting plug hole (A) from the front door module.
- After loosening the glass mounting bolts, adjust the spacing of the glass (B) by moving the glass from side to side and then tighten the bolts.
- Check the glass for normal operation.
