Repair Procedures: Replacement

1. Remove the rear door window glass.

   (Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

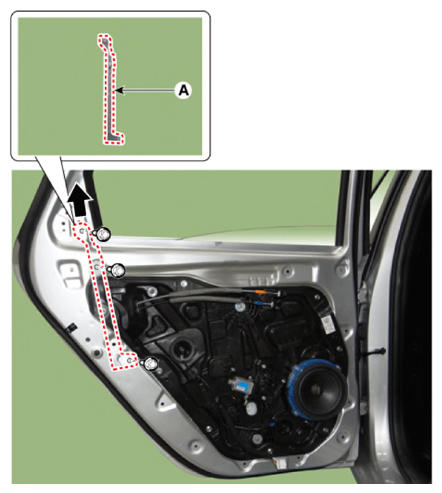

2. After loosening the mounting bolts, remove the rear door channel (A)

   Tightening torque

   Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

   Nut: 7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

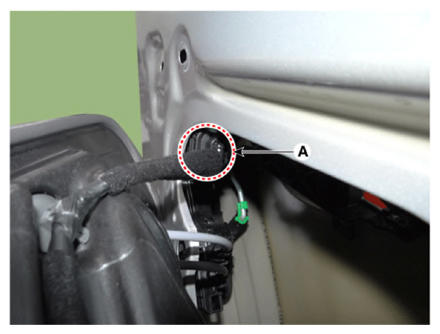

3. Disconnect the rear door main wiring connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

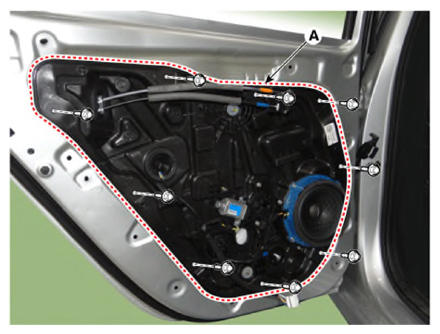

4. After loosening the mounting bolts, remove the rear door module (A).

   Tightening torque:

   7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

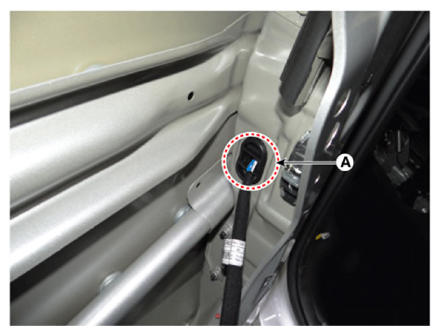

5. Disconnect the Rear door latch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

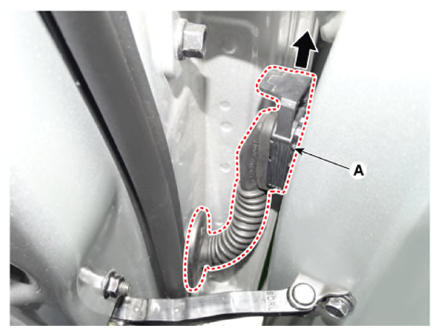

6. Disconnect the Rear door main wiring (A).

   Courtesy of KIA MOTORS AMERICA, INC.

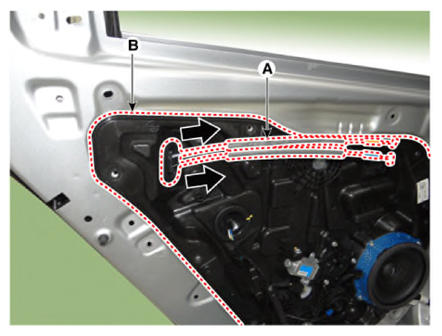

7. Remove the rear door module (B) from the inside handle cable (A) by pulling it in the direction of the arrow

   Courtesy of KIA MOTORS AMERICA, INC.

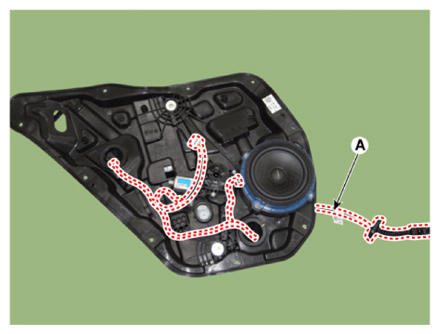

8. Disconnect the connectors and rear door module wiring harness (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the rear speaker.

   (Refer to Body Electrical System - "SPEAKERS ")

10. Remove the rear power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

11. To install, reverse the removal procedure.

Information

• Make sure connectors are connected properly and each rod is connected securely.
• Make sure the door locks/unlocks and opens/closes properly.
