Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

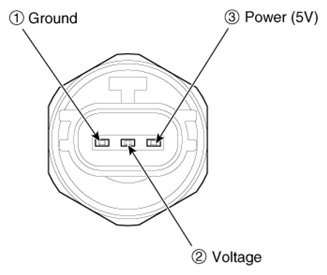

- Measure the pressure of high pressure line by measuring voltage output between terminal "1" and "2".
- Inspect the voltage value whether it is sufficient to be regular value or not.
Voltage = 0.00878835 * Pressure + 0.37081095
- If the measured voltage value is not within specification, replace the A/C pressure transducer.
