Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.

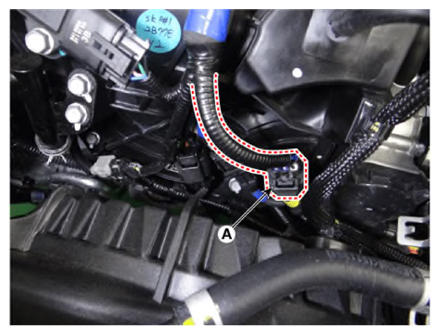

Disconnect the vacuum pump connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct and air cleaner assembly.
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "AIR CLEANER ")

G 2.0 MPI NU (ATKINSON) (Refer to Engine Mechanical System - "AIR CLEANER ")

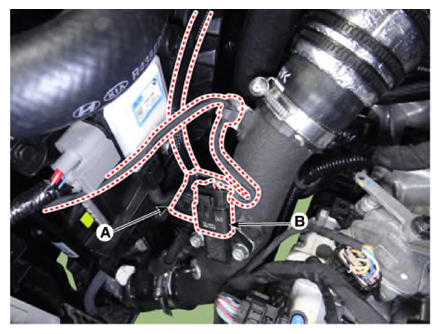

Disconnect the RCV Solenoid valve connector (A) and booster pressure sensor (BPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

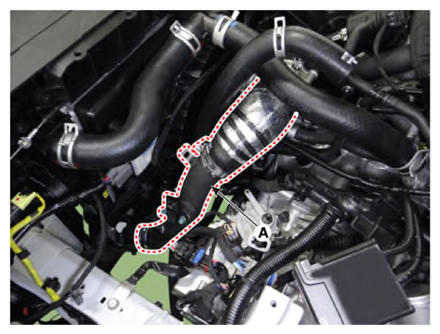

Disconnect the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

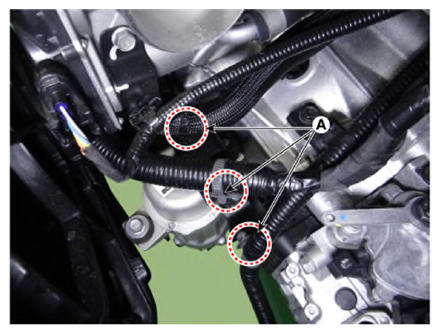

Disconnect the clip (A) from the vacuum pump bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

G 2.0 MPI NU (ATKINSON) (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

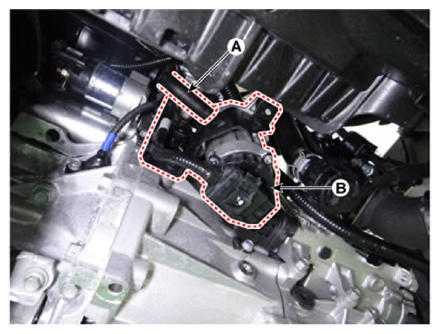

Disconnect the vacuum hose (A) and then remove the vacuum pump (B).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
