Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

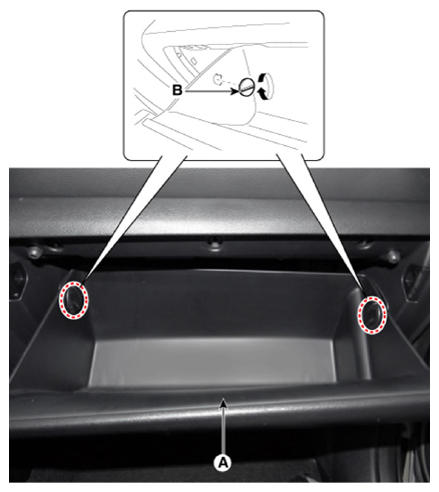

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Courtesy of KIA MOTORS AMERICA, INC.

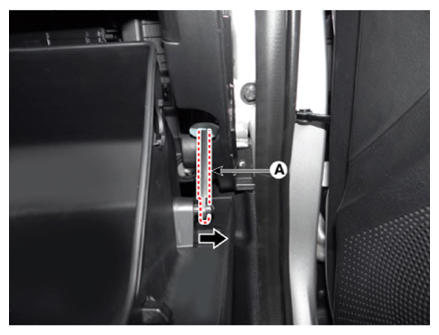

Separate the air damper (A) from the glove box.

Courtesy of KIA MOTORS AMERICA, INC.

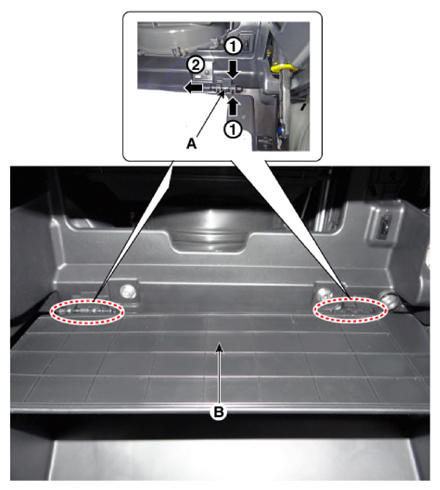

Disconnect the push-pins (A) and then remove the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
