Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

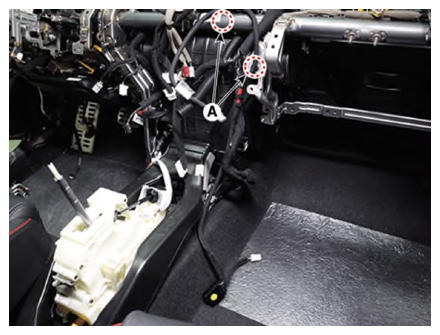

Remove the fixing fasteners (A).

Courtesy of KIA MOTORS AMERICA, INC.

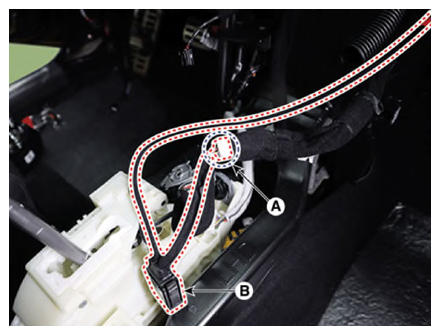

Remove the multimedia wiring jack (B) after disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
