Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

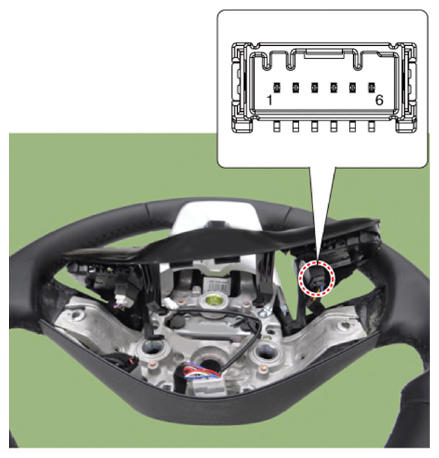

  1. Check for resistance between terminals in each switch position (LH).
    G14563730Courtesy of KIA MOTORS AMERICA, INC.

    [Audio + Bluetooth + Voice]

    Switch Connector terminal Resistance (±3%)
    SEEK Up 1-6 430 Ω
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 kΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    END 18.91 kΩ
    SEND 40.91 kΩ

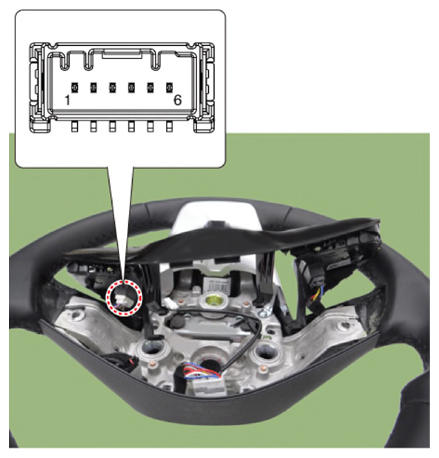

  2. Check for resistance between terminals in each switch position (RH).
    G14563731Courtesy of KIA MOTORS AMERICA, INC.

    [Cruise]

    Switch Connector terminal Resistance (±3%)
    Cancel 2 - 6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    Cruise & Speed Limit ON/OFF 2.13 kΩ
    SCC (Following distance control) 3.63 kΩ

    [Trip]

    Switch Connector terminal Resistance (±3%)
    Group 1 - 6 390 Ω
    Trip Up 610 Ω
    Trip Down 910 Ω
    Trip ON/Reset 1.38 kΩ
