Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.
NOTE:
- When installing, place the wiper arm to the specified position and then tighten the nut.
[Passenger side]

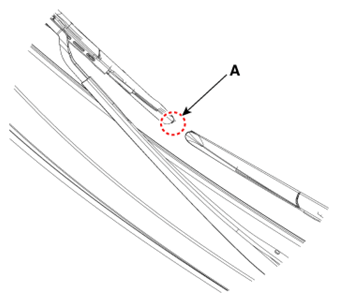

- Place the wiper of passenger side to the marking (A) position of cowl top cover.
[Driver side]
- Place the wiper of driver side to the end (A) of passenger wiper blade.
