Repair Procedures: Removal: 5DR

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler.

    (Refer to Body - "REAR SPOILER ")

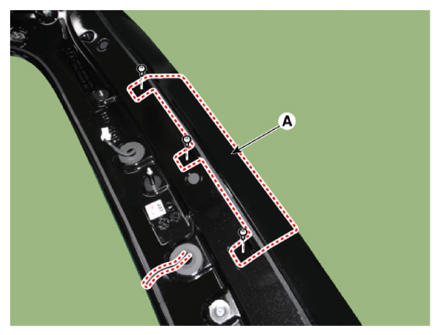

  2. Remove the cover (A) by loosening the screws.
    G14564010Courtesy of KIA MOTORS AMERICA, INC.

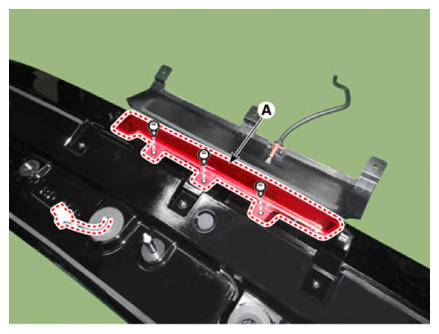

  3. Remove the high mounted stop lamp (A) after loosening the screws.
    G14564011Courtesy of KIA MOTORS AMERICA, INC.
