Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • If reinstalling used cover, the cover should be installed with its clutch disc as a set.

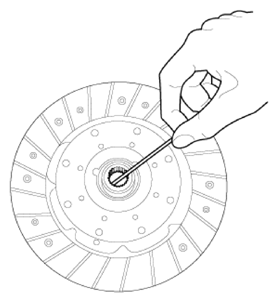

  1. Apply grease on a disc spline part and transaxle input shaft spline part as required.

    Specified grease:  CASMOLY L9508

    Amount:  0.1 - 0.3 g

    NOTE:
    • When not applying: Excessive wear of splines and bad clutch operation can occur.
    • When applying excessively: Grease can be spread by the centrifugal force which can contaminate the clutch disc. This can cause a loss of friction force causing a slip.
    G13303966Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the clutch disc and the cover with special tool (09411-1P000).
    NOTE: Possible problems when the disc is installed in the opposite direction.
    • Transaxle shift error or a strange sound can occur due to clutch separation.

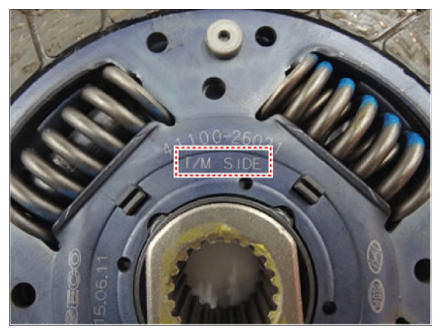

    Gasoline 1.6:  The 'T/M SIDE' marked surface should face the transaxle.
    G13303967Courtesy of KIA MOTORS AMERICA, INC.

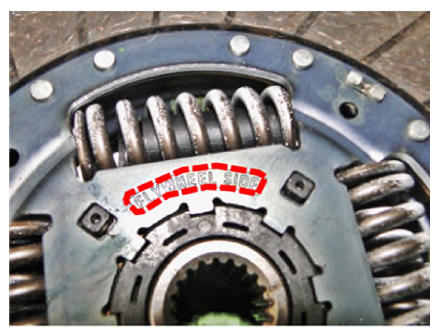

    Gasoline 2.0/Gasoline 1.6 T-GDI:  The 'FLYWHEEL SIDE' marked surface should face the flywheel.

    G13303968Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the clutch cover bolts.

    Tightening torque

    Gasoline 1.6:  24.5 - 35.3 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb.ft)

    Gasoline 2.0/Gasoline 1.6 T-GDI:  11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    NOTE:
    • Install the all the components with the specified torques. If not, the clutch torque transaxle may have concerns or the mounting bolt can loosen.
    • When installing the clutch cover assembly, check the fastening order for each number of bolts and tighten the bolts loosely. Then, fasten the bolts to their proper tightening torque. This can prevent twisting and vibration of the cover, and lifting of the pressure plate.

      Fastening order for each number (6 or 9) of bolts for installing the clutch cover assembly

      G13303969Courtesy of KIA MOTORS AMERICA, INC.

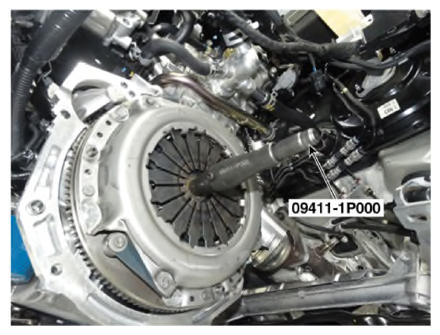

  4. Remove the clutch disc guide special tool (09411-1P000).
    G13303970Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the transaxle assembly.

    G 2.0 MPI (Refer to Manual Transaxle System - " MANUAL TRANSAXLE  ")

    G 1.6 T-GDI GAMMA (Refer to Manual Transaxle System - " MANUAL TRANSAXLE  ")
