Repair Procedures: Inspection

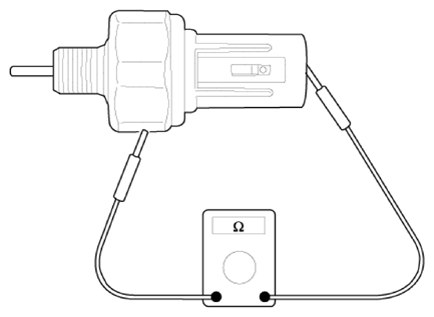

Check the continuity between the terminal and the body with an ohmmeter.
If there is no continuity, replace the oil pressure switch.

Courtesy of KIA MOTORS AMERICA, INC.

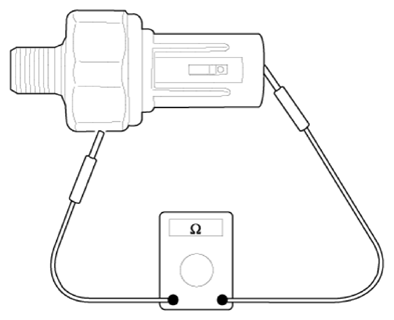

Check the continuity between the terminal and the body when the fine wire is pushed.
If there is continuity even when the fine wire is pushed, replace the switch.

Courtesy of KIA MOTORS AMERICA, INC.
If there is no continuity when a 19.6-39.2 kPa (0.2-0.4kg/cm² , 2.8-5.6 psi) is applied through the oil hole, the switch is operating properly.
Check for air leakage. If air leaks, the diaphragm is broken.

Replace it.
