Repair Procedures: Removal

Disconnect the battery negative (-) cable.
Remove the Integrated central control unit (ICU).
(Refer to Body Electrical System - "INTEGRATED CENTRAL CONTROL UNIT (ICU) ")

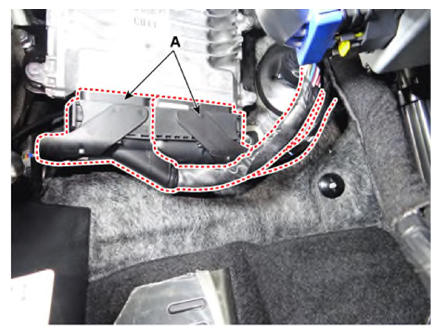

Disconnect the TCM connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

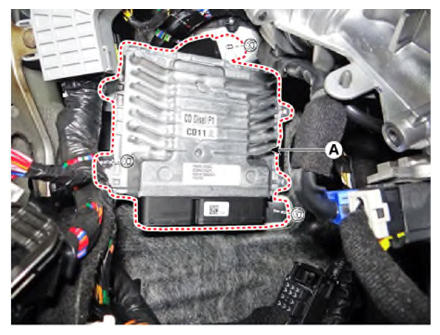

Remove the TCM (A) after loosening the nuts.

Courtesy of KIA MOTORS AMERICA, INC.
