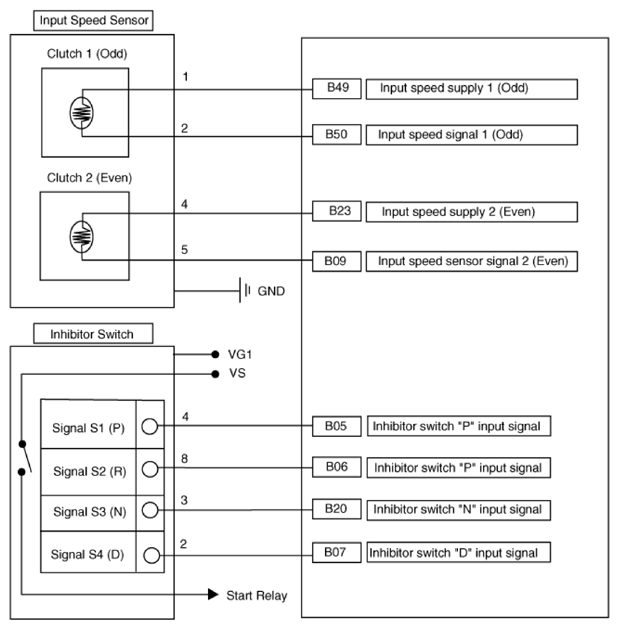

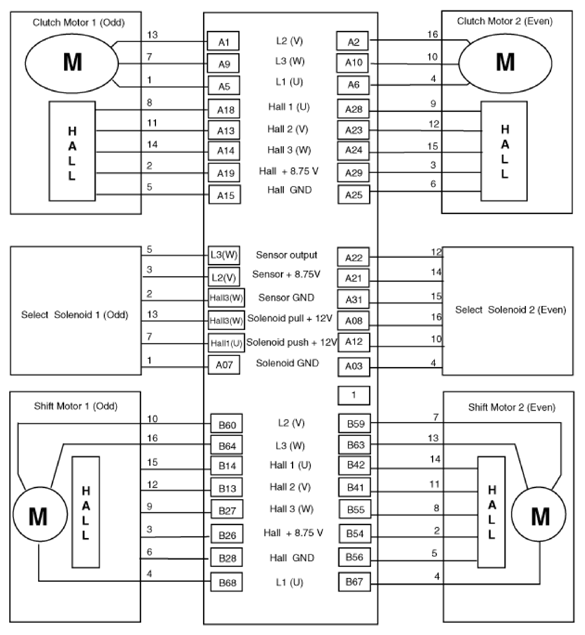

Home › Kia › 2021 › Forte GT, Automatic DCT Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Double Clutch Transmission Control System - 1.6L › DCT Control Module (TCM) › Schematic Diagrams › Terminal Input/Output Signal › Circuit Diagram
