Repair Procedures: Installation

Install in the reverse order of removal.

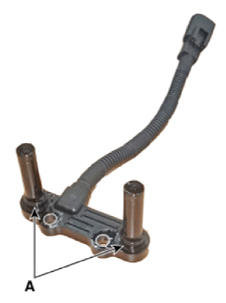

NOTE: Before installing the input speed sensor, check the assembled state of the O-rings (A) and apply gear oil to the surface of O-rings.

Courtesy of KIA MOTORS AMERICA, INC.
