Repair Procedures: Removal
- Remove the clutch actuator.
(Refer to Double Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

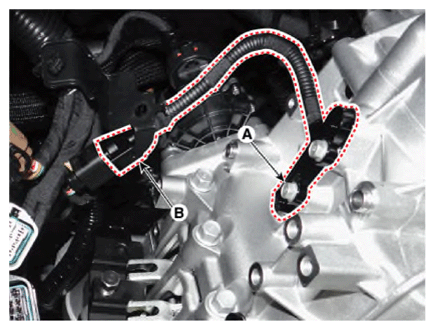

- Remove the input speed sensor (A) by loosening the bolts after disconnecting the connector (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
