Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

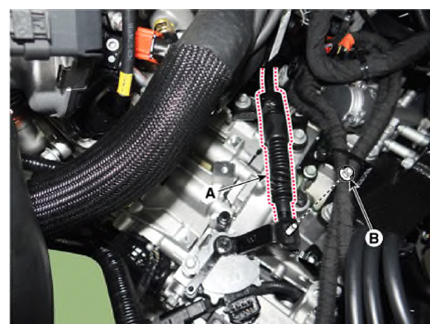

  4. Remove the shift cable (A) from the bracket after loosening a nut (B).
    G13304198Courtesy of KIA MOTORS AMERICA, INC.

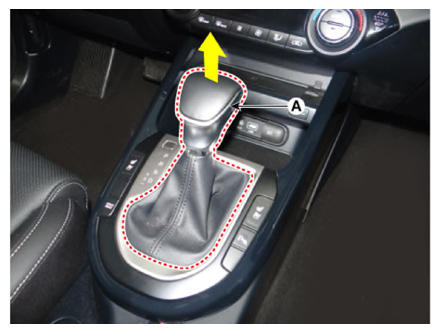

  5. Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
    G13304199Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

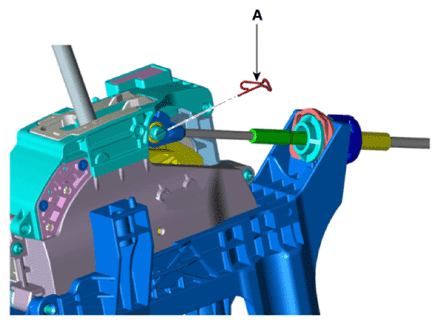

  7. Remove the shift cable from the shift lever pin after removing the snap pin (A).
    G13304200Courtesy of KIA MOTORS AMERICA, INC.

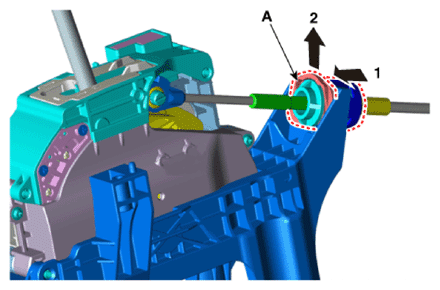

  8. Remove the cable socket (A) from the shift lever.
    G13304201Courtesy of KIA MOTORS AMERICA, INC.

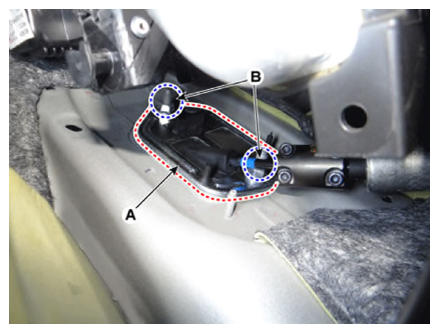

  9. Remove the shift cable retainer (A) after loosening the nuts (B).

    Then, remove the shift cable by pulling it toward the vehicle interior.

    G13304202Courtesy of KIA MOTORS AMERICA, INC.
