Home › Kia › 2021 › Forte GT, Standard Trans › Repair and Diagnosis › Engine Mechanical › Lubrication System - 1.6L › Oil Pan › Components & Components Location › Components

Components & Components Location: Components

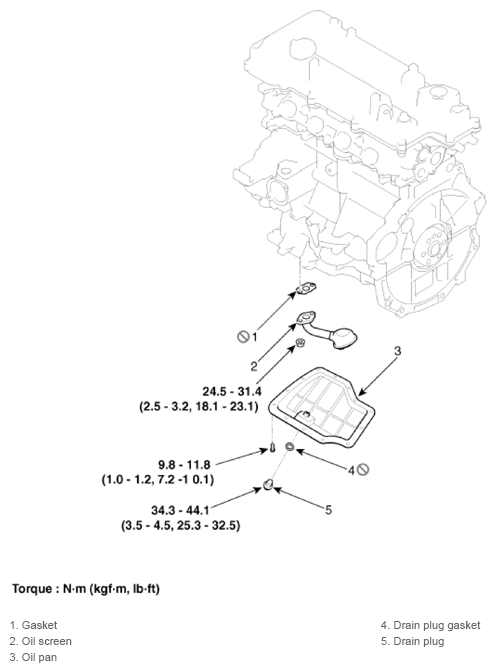

Fig 1: Oil Pan Components With Torque Specification
G13303459Courtesy of KIA MOTORS AMERICA, INC.
