Cylinder Block - 1.6L
›
Piston & Connecting Rod
›
Components & Components Location
›
Components
Components & Components Location: Components

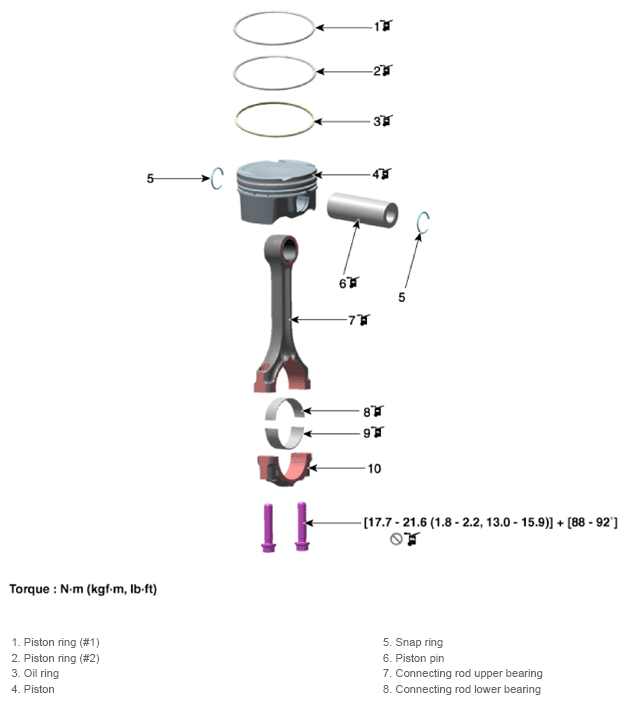

Fig 1: Piston & Connecting Rod Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
