Fuel Sender
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the fuel pump assembly.

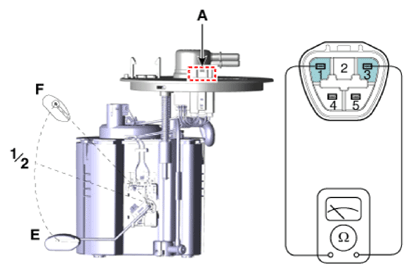

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Pin No. Description 1 Fuel sender ground (-) 2 - 3 Fuel sender signal (+) 4 Fuel pump motor (+) 5 Fuel pump motor (-) - Also check that the resistance changes smoothly when the float is moved from "E" to "F".
Position Resistance (Ω) Capacity (l ) E 298 - 305 2.7 1/2 85.5 - 87.5 23.4 F 14 - 16 44.1
