Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

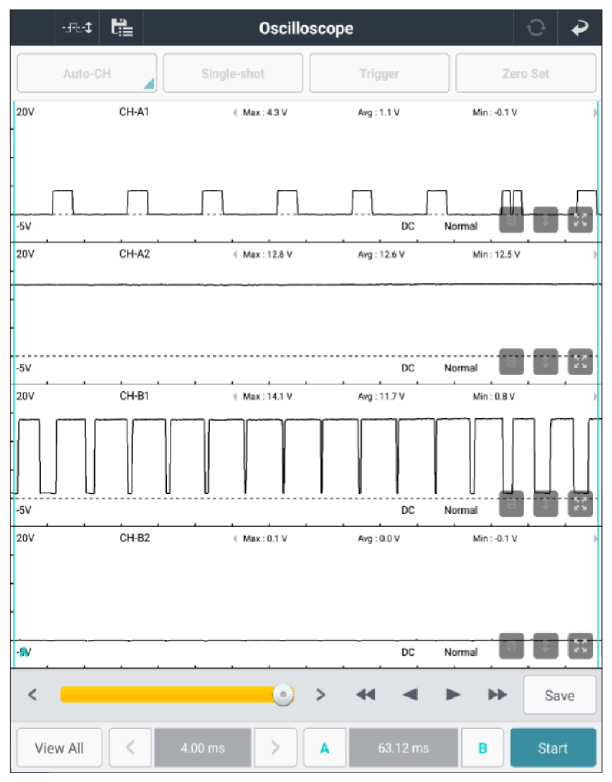

Alternator connector | 1 (COM) | Alternator connector | 2 (L) | Fig.1 |
| Alternator connector | 3 (FR) | Chassis ground | - | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the alternator and go to "VERIFICATION OF REPAIR " procedure.
