Manual Transaxle Control System - 1.6L
›
Shift Lever
›
Components & Components Location
›
Components
Components & Components Location: Components

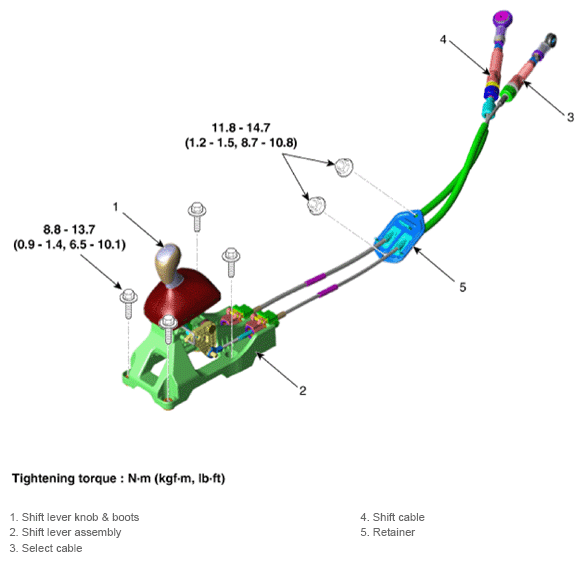

Fig 1: Shift Lever Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
