Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

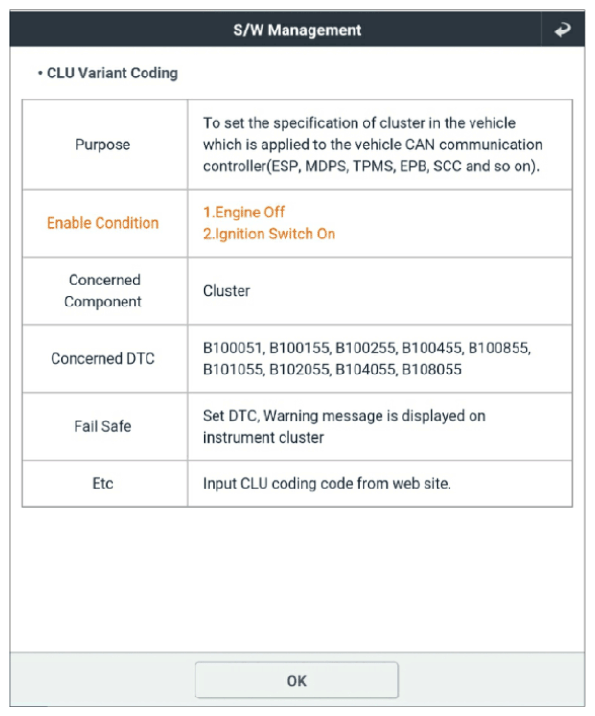

G13301949Courtesy of KIA MOTORS AMERICA, INC.

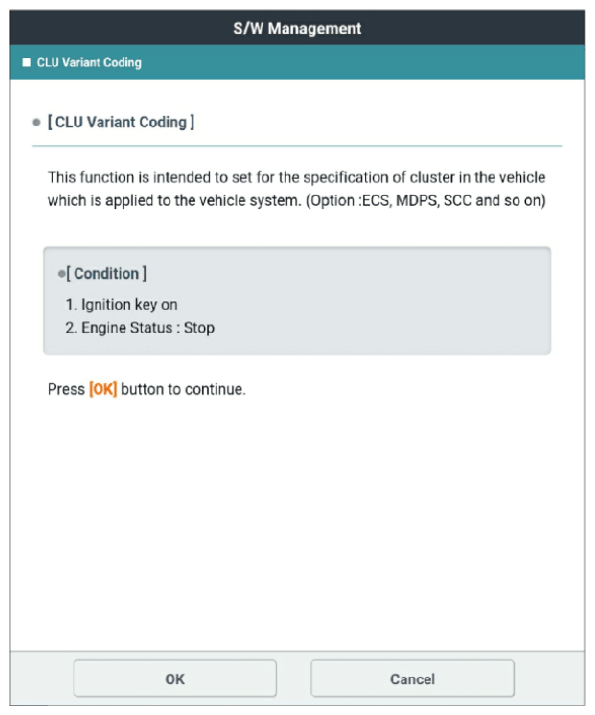

G13301950Courtesy of KIA MOTORS AMERICA, INC.

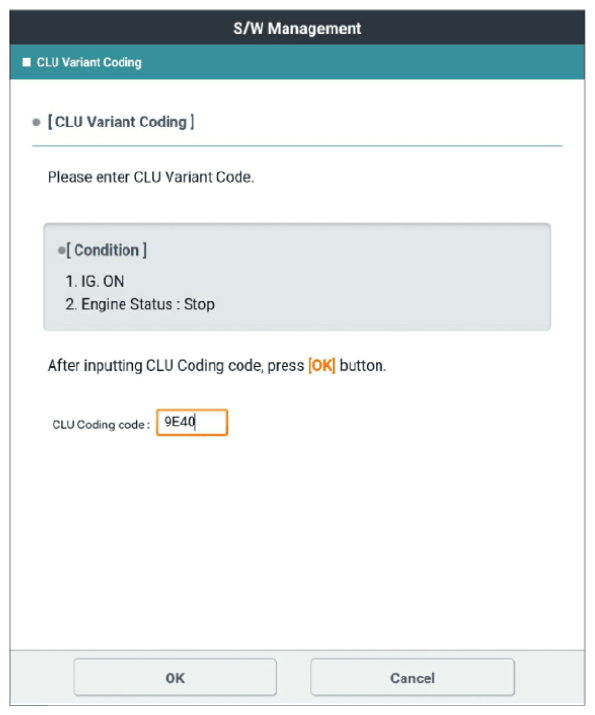

G13301951Courtesy of KIA MOTORS AMERICA, INC.

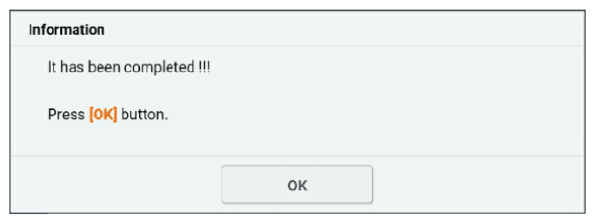

G13301952Courtesy of KIA MOTORS AMERICA, INC.

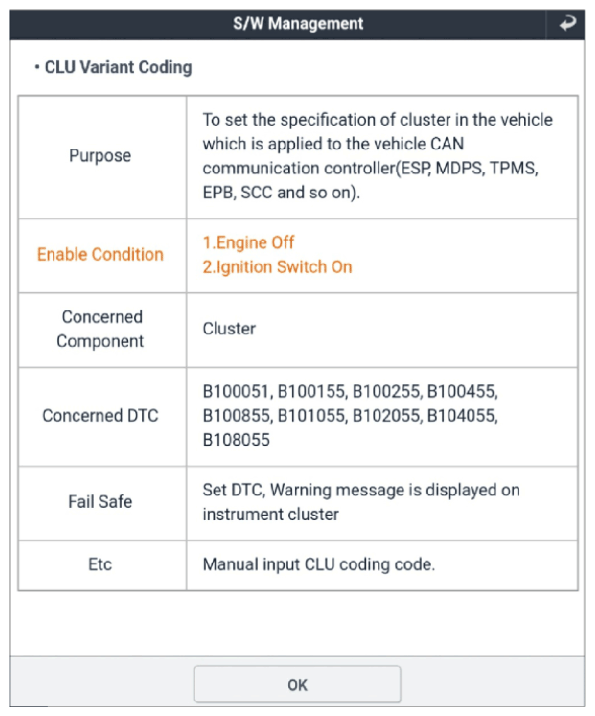

G13301953Courtesy of KIA MOTORS AMERICA, INC.

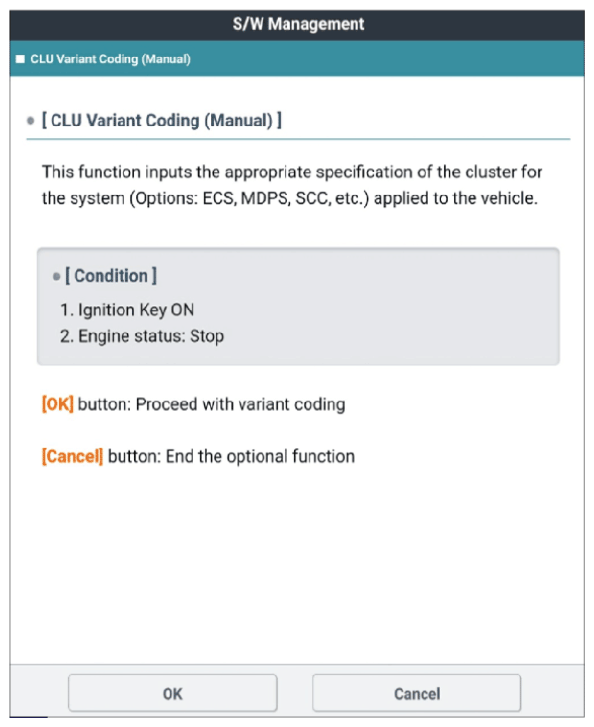

G13301954Courtesy of KIA MOTORS AMERICA, INC.

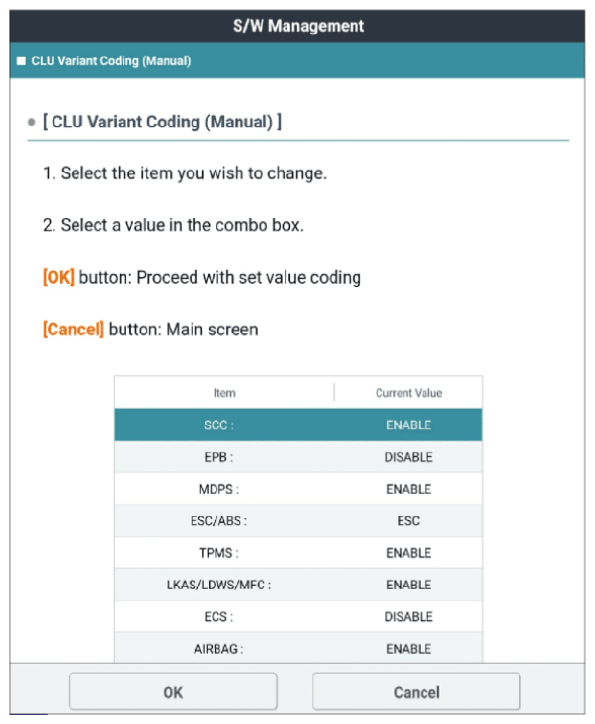

G13301955Courtesy of KIA MOTORS AMERICA, INC.

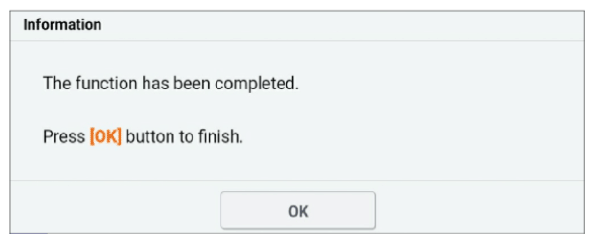

G13301956Courtesy of KIA MOTORS AMERICA, INC.
