Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8
G13302029Courtesy of KIA MOTORS AMERICA, INC.

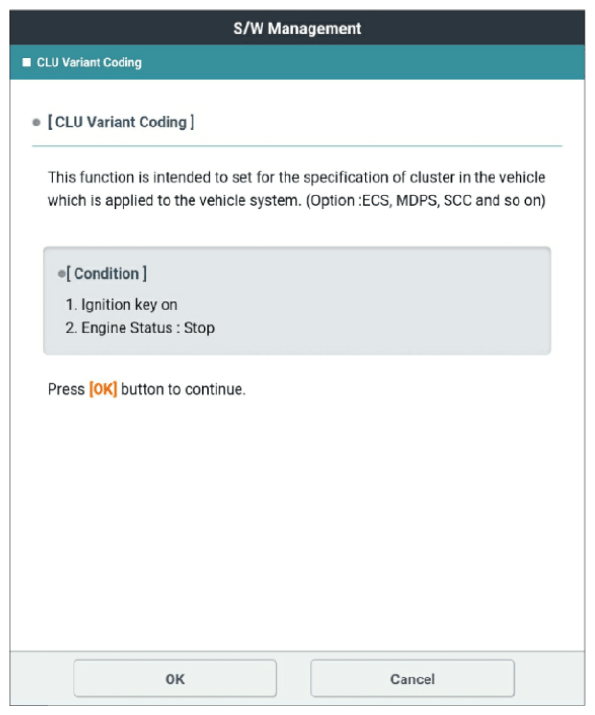

G13302030Courtesy of KIA MOTORS AMERICA, INC.

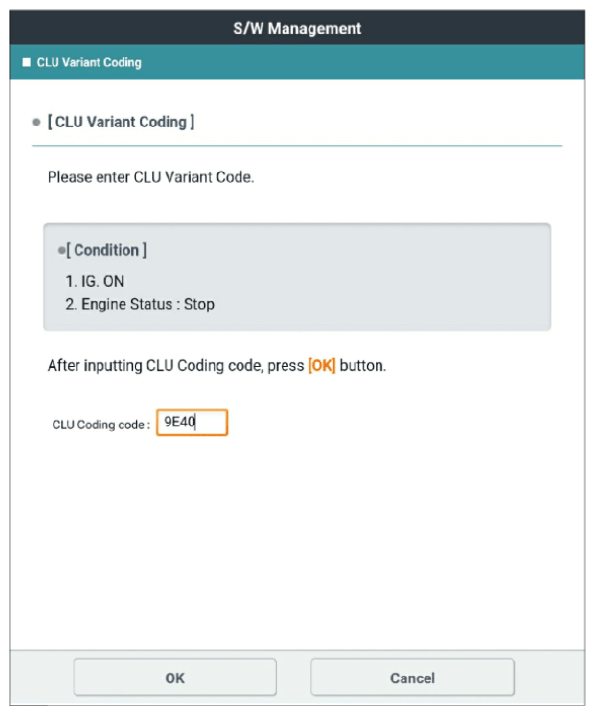

G13302031Courtesy of KIA MOTORS AMERICA, INC.

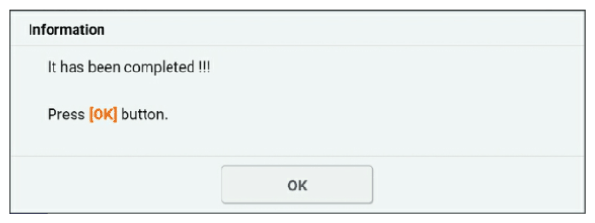

G13302032Courtesy of KIA MOTORS AMERICA, INC.

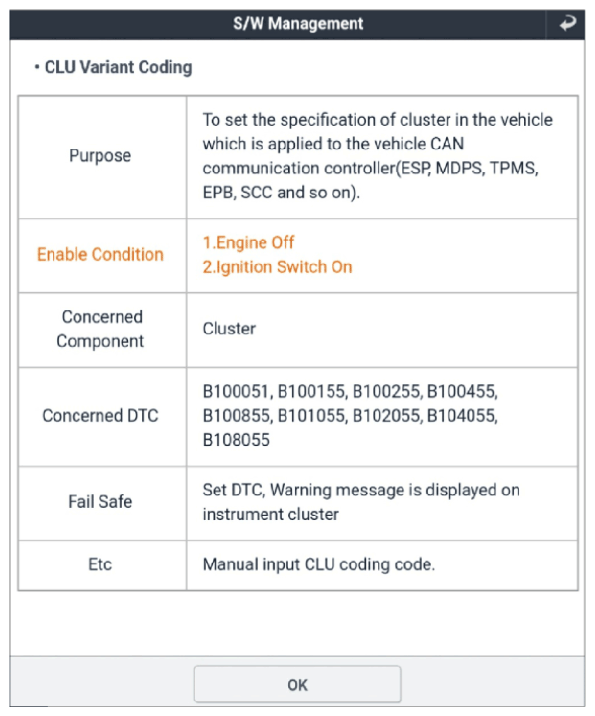

G13302033Courtesy of KIA MOTORS AMERICA, INC.

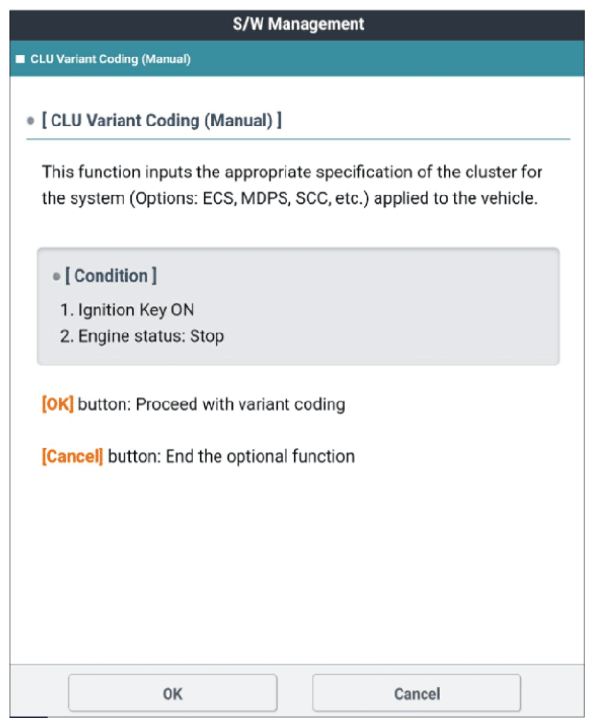

G13302034Courtesy of KIA MOTORS AMERICA, INC.

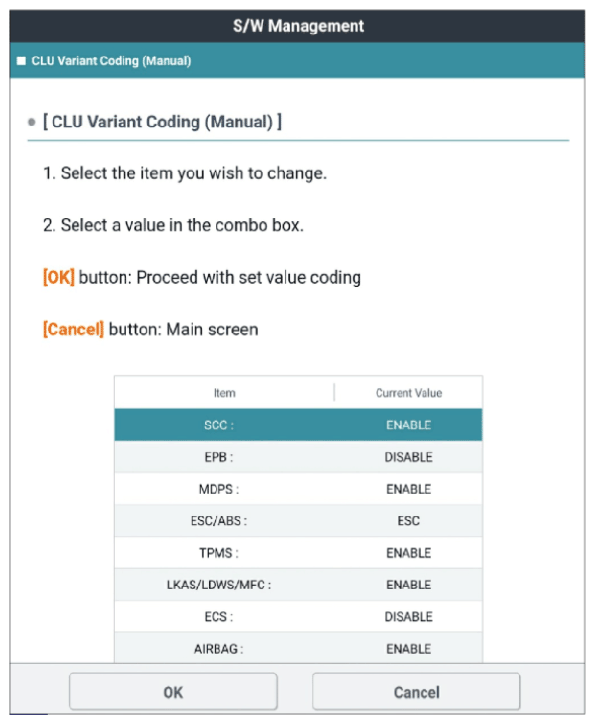

G13302035Courtesy of KIA MOTORS AMERICA, INC.

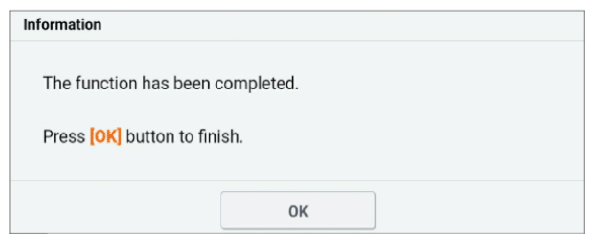

G13302036Courtesy of KIA MOTORS AMERICA, INC.
