Repair Procedures: Removal
- Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

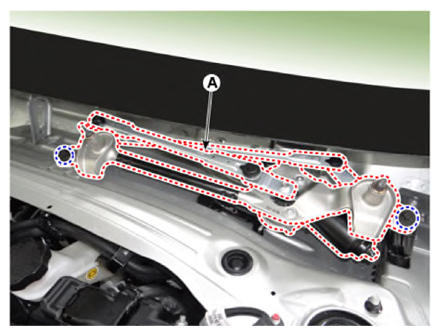

- Remove the wiper motor & linkage assembly (A) after loosening the mounting bolts.
Tightening torque : 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

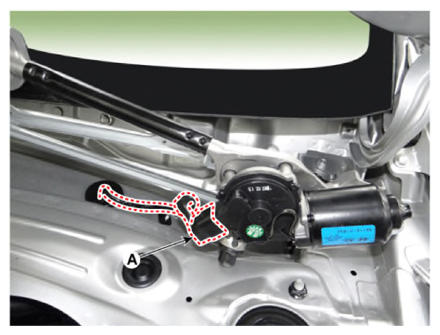

- Disconnect the wiper motor connector (A).
