Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

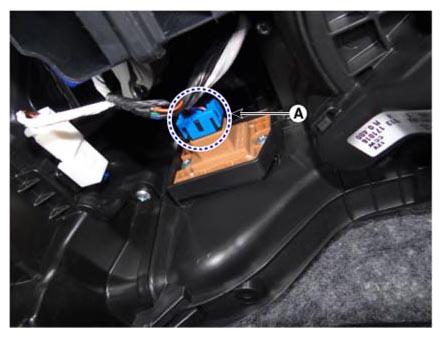

- Disconnect the power mosfet connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

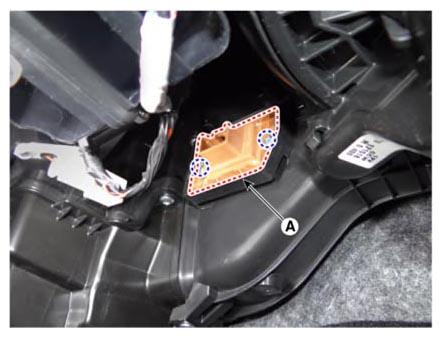

- After loosening the mounting screws, remove the power mosfet (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse the removal procedure.
