Components Location

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
G14561344Courtesy of KIA MOTORS AMERICA, INC.

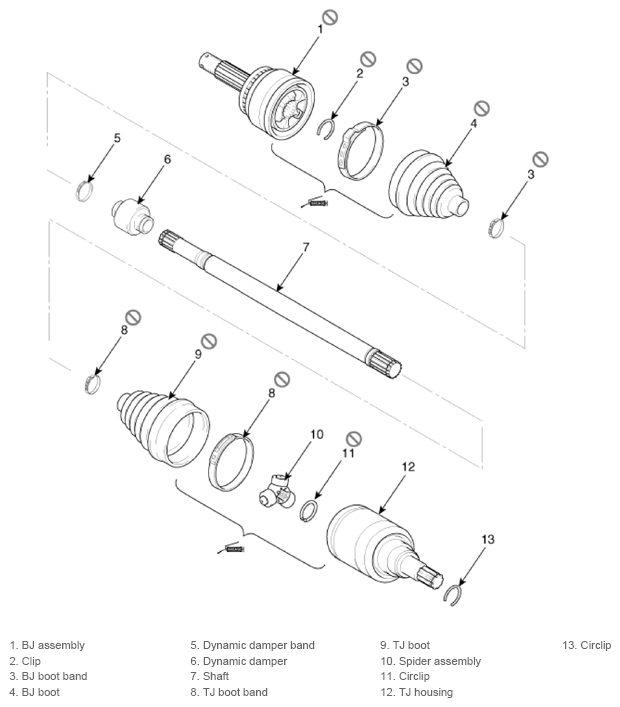

G14561345Courtesy of KIA MOTORS AMERICA, INC.

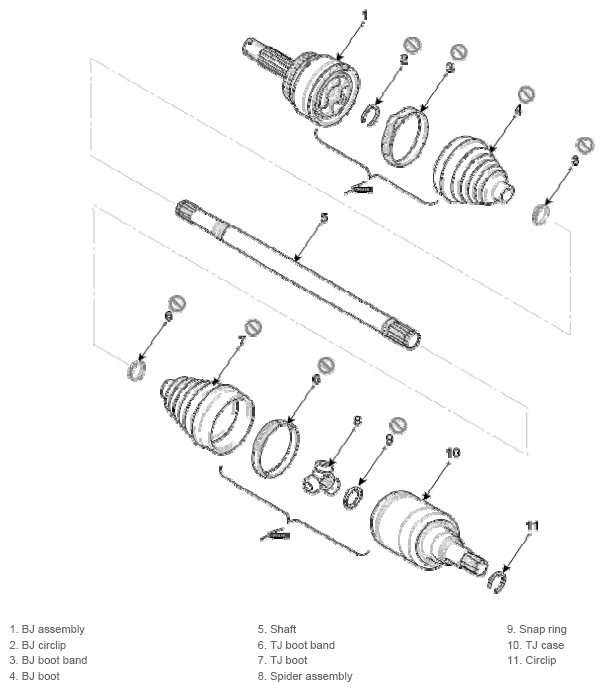

G14561346Courtesy of KIA MOTORS AMERICA, INC.
