Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

[NON - ISG type]

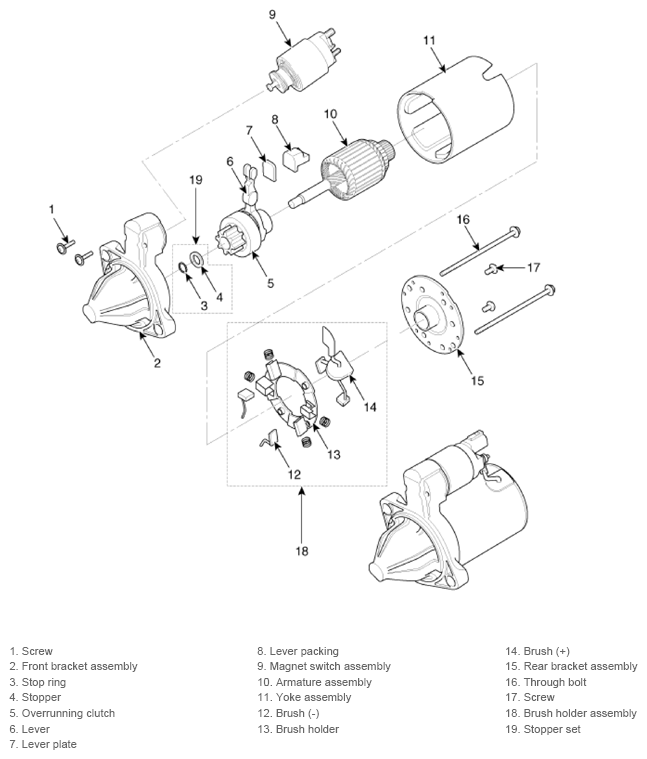

Fig 1: Starter Assembly Exploded View
G13303632Courtesy of KIA MOTORS AMERICA, INC.
