Repair Procedures: Installation

1. Install in the reverse order of removal.
   NOTE:

   • Assemble with pushing it to the middle of air bag wire module.
   • Make sure the airbag wire not to be jammed in inner structure of wheel when DAB module is assembled on wheel.

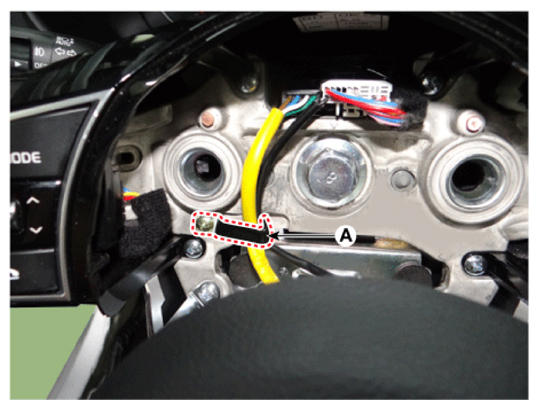

   • Make airbag and horn wire to be fixed by using band clips (A) in steering wheel.

Courtesy of KIA MOTORS AMERICA, INC.
